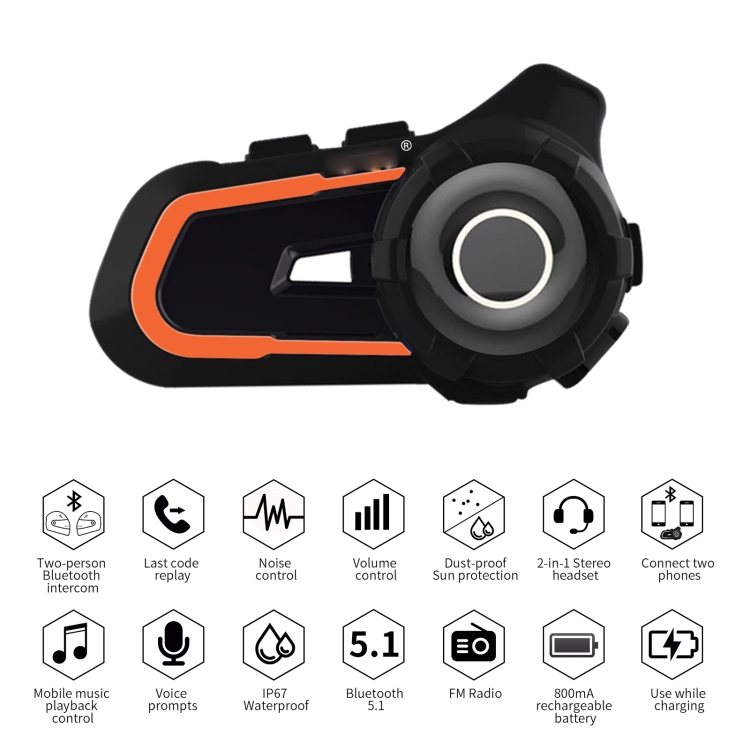

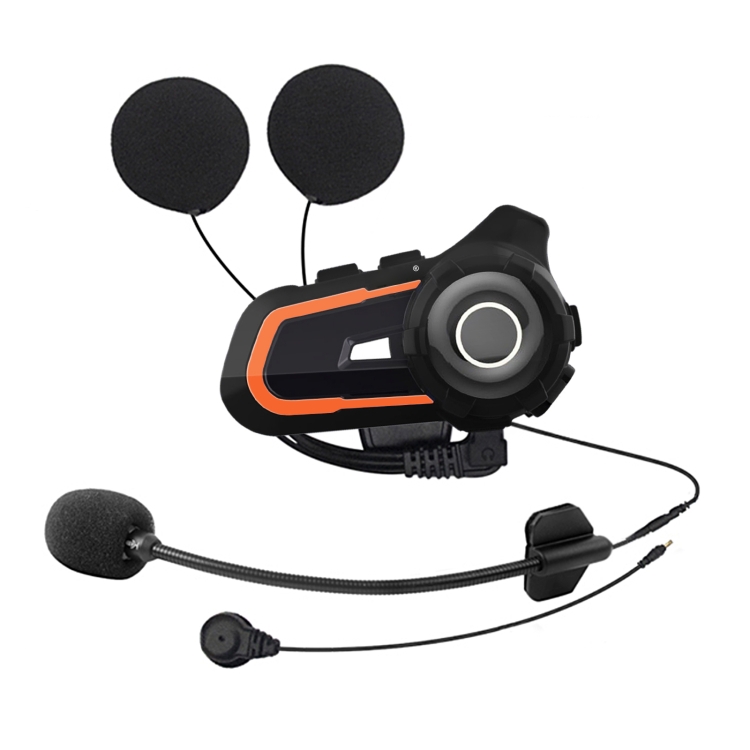

WUPP CS-1412B1 Bluetooth 5.1 S2 Motorcycle Helmet Full Duplex Bluetooth Intercom Headset Earphone(Orange)
WUPP CS-1412B1 蓝牙5.1 S2摩托车头盔全双工蓝牙对讲耳机（橙色）
条码：6922197235891
HSCode：85171420
批量修改原始型号 		采购：Felix  编辑：Ellie  产品经理：Maura

1. Bluetooth version: Qualcomm CSR 5.1 Bluetooth chip
2. Play time: 22 hours or more
3. Standby time: 400 hours
4. Charging time: about 2.5 hours
5. Charging interface: TYPE-C Android phone plug
6. Power requirement: charging requirement 5V1A
7. FM support range: 87-108M
8. Installation method: clip installation, hook and loop fastener installation
9. The product adopts Bluetooth 5.1 chip, which is more power saving, low latency, no noise, realizes stable audio transmission, supports pairing with most other brand Bluetooth intercom headsets and ordinary Bluetooth headsets on the market
10. The product adopts CVC8.0 double-meter noise reduction, DSP software algorithm intelligent quadruple noise reduction, which can ensure the quality of the call when using at high speed; equipped with 2IN1 soft and hard labels and double-mark noise reduction function, the noise reduction effect is better
11. The intercom distance can reach 800-1000 meters, when the Bluetooth hands-free answering the phone, the distance is more than 20 meters, can support three people to connect, two people full duplex intercom (can carry out two-way signal transmission at the same time)
12. The product can be connected to two mobile phones at the same time to realize the control of the basic functions of the mobile phone, (receiving calls, playing music, receiving and FM); automatically answer the phone, if you don’t want to answer, you can press the button to reject or hang up, and then redial the last code ; You can also switch freely between phone, Bluetooth intercom, and stereo music
13. The product uses 800mAh super-capacity rechargeable polymer lithium battery, talk time 22 hours, standby time 400 hours; support IOS, part of the ANDROID system headset power display, check the power anytime and anywhere, at a glance; you can also use it while riding Use, while charging, realize the correct charging and use
14. The product design is IP67 waterproof, even if it is used in rain or snow, it will not be affected at all

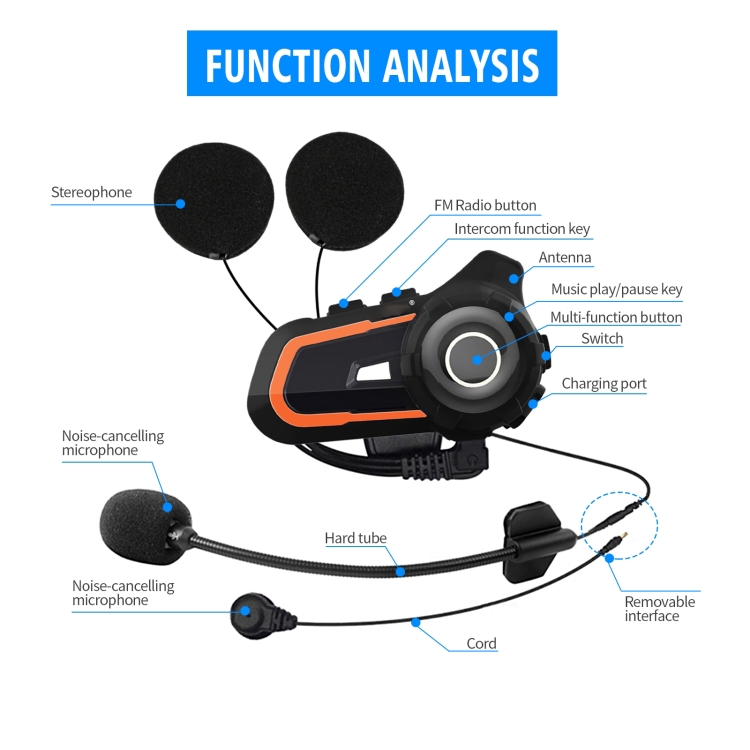

15. The product adopts multi-function buttons with large rotating parts, the button layout is reasonable, the function area is clear, and the blind operation of riding off-target can be completed quickly and safely.

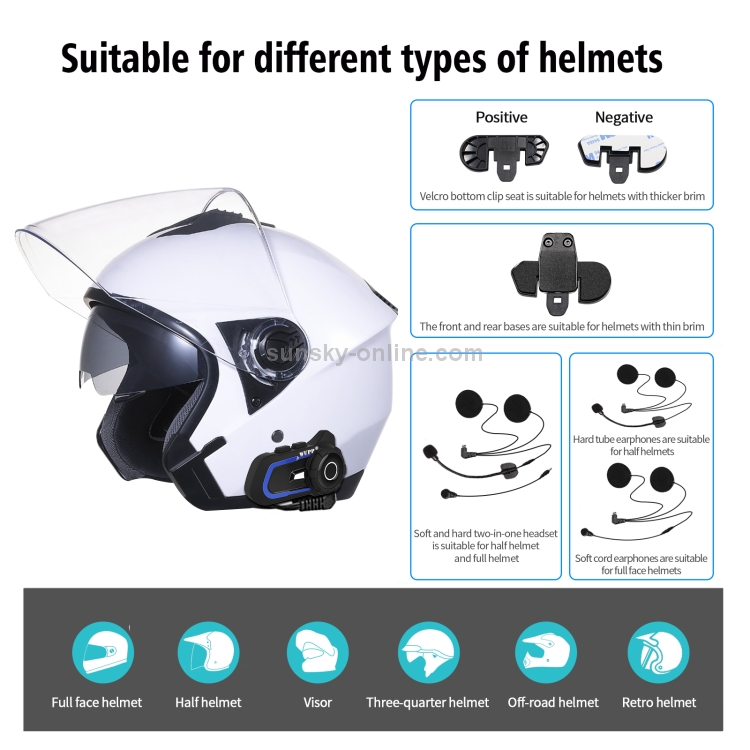

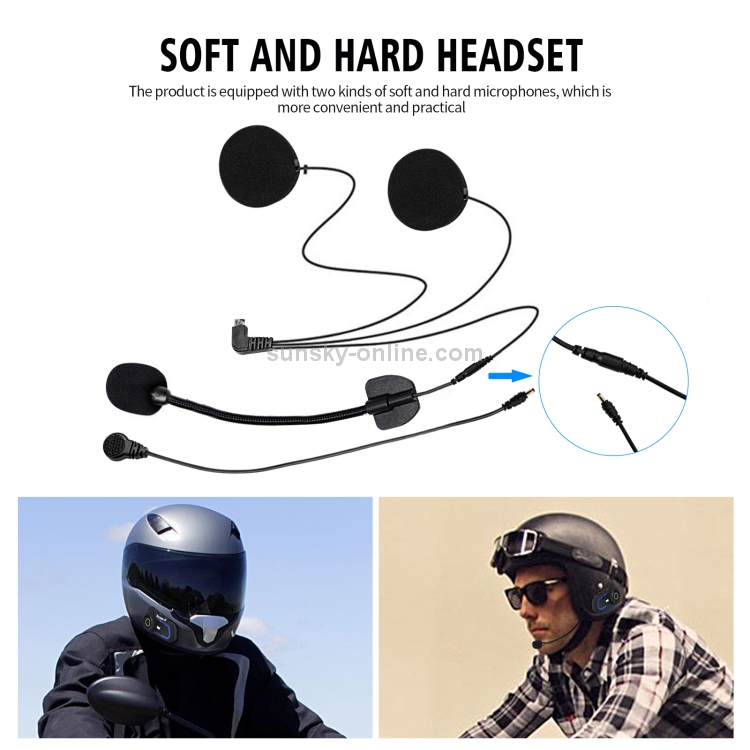

16. The product is equipped with soft and hard two-in-one earphones, hook and loop fastener bottom clips, front and rear bottom clips, suitable for any kind of motorcycle helmets
17. Support K line, connect to ordinary walkie-talkie

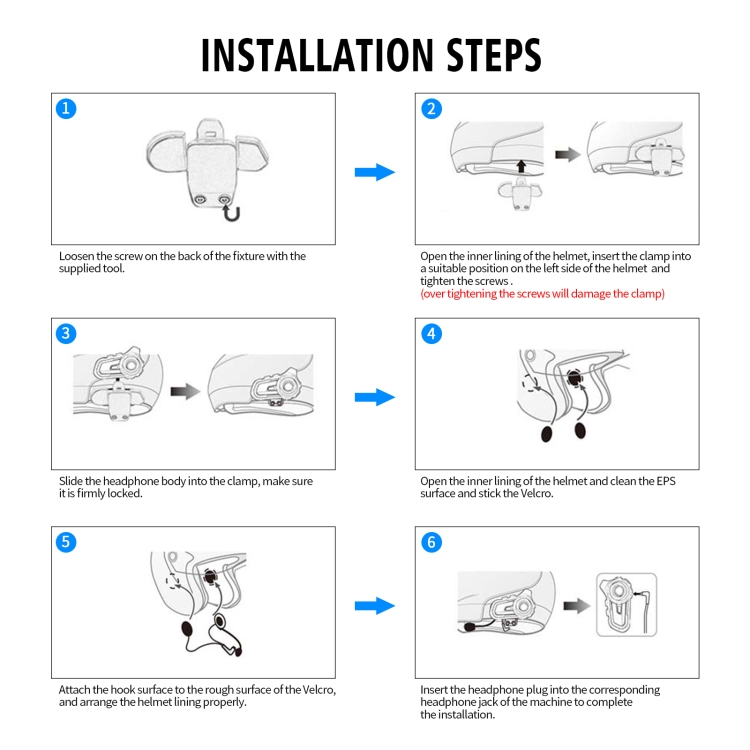

Installation steps:
1. Loosen the screw on the back of the fixture with the provided screwdriver
2. Open the inner lining of the helmet, insert the clamp into a suitable position on the left side of the helmet and tighten the screw (over tightening the screw will damage the clamp)
3. Slide the machine into the clamp, make sure it is securely locked
4. Open the inner lining of the helmet (at the ear position), clean the surface of the EPS, and stick the hook and loop fastener on the rough surface
5. Attach the hook surface to the rough surface of the nylon buckle and arrange the helmet lining properly
6. Insert the headphone plug into the corresponding headphone jack on the machine to complete the installation


1. 蓝牙版本：高通CSR 5.1 蓝牙芯片
2. 播放时长：22个小时以上
3. 待机时间：400小时
4. 充电时间：约2.5个小时
5. 充电接口：TYPE-C安卓通话插头
6. 电源要求：充电要求5V1A
7. FM支持范围：87-108M
8. 安装方式：夹子安装、魔术贴安装
9. 产品采用蓝牙5.1芯片，更省电，低延迟，无杂音，实现稳定的音频传输，支持配对市场上大多数的其他品牌蓝牙对讲耳机及普通蓝牙耳机
10. 产品采用CVC8.0双米降噪、DSP软件算法智能四重降噪，高速行使时可确保通话质量；配2IN1 软、硬唛 且具双唛降噪功能，降噪效果更好
11. 对讲距离可达800-1000米，蓝牙免提接电话时，距离20米以上，可支持三人连接，两人全双工对讲（可以同时进行信号的双向传输）
12. 产品可同时连接两台手机，实现对手机基本功能的操控，(接打电话、播放音乐，收音调频)；自动接听电话，如不想接可以按键拒绝或者挂断，之后进行末码重拨；还可以在电话、蓝牙对讲、立体音乐之间自由转换
13. 产品采用800mAh超大容量可充电聚合物锂电池，通话时间 22 小时，待机时间400小时；支持IOS、部分ANDROID系统的耳机电量显示，随时随地查看电量，一目了然；还可以在骑行过程中一边使用，一边充电，实现充电使用两不误
14. 产品设计IP67级防水，即使在雨雪天气使用，也完全不受影响
15. 产品采用超大旋转件多功能按键，按键布局合理，功能区域清晰，确保骑行脱靶盲操作能快速安全的完成
16. 产品配有软硬二合一耳机、魔术贴底夹、前后底夹，适合任何种类的摩托车头盔
17. 支持 K 线，接普通对讲机

安装步骤：
1. 用提供的螺丝刀松开夹具背面的螺丝
2. 打开头盔内衬，将夹钳插入头盔左侧合适的位置并拧紧螺钉（螺钉拧得过紧会损坏夹钳）
3. 将机器滑入夹钳，请确保它已牢固锁定
4. 打开头盔内衬（在耳朵位置），清洁EPS表面，在粗糙表面贴上魔术贴
5. 将挂钩表面贴在尼龙塔扣的粗糙表面上，并妥善整理头盔衬里
6. 将耳机插头入机器上相应的耳机插孔，完成安装


代码：

Specification:
Package weight
One package Weight 0.35kgs / 0.77lb
One Package Size 18.0cm * 14.0cm * 5.0cm / 7.09inch * 5.51inch * 1.97inch
Qty per Carton 40
Carton Weight 15.38kgs / 33.91lb
Carton Size 36cm * 28cm * 50cm / 14.17inch * 11.02inch * 19.69inch
