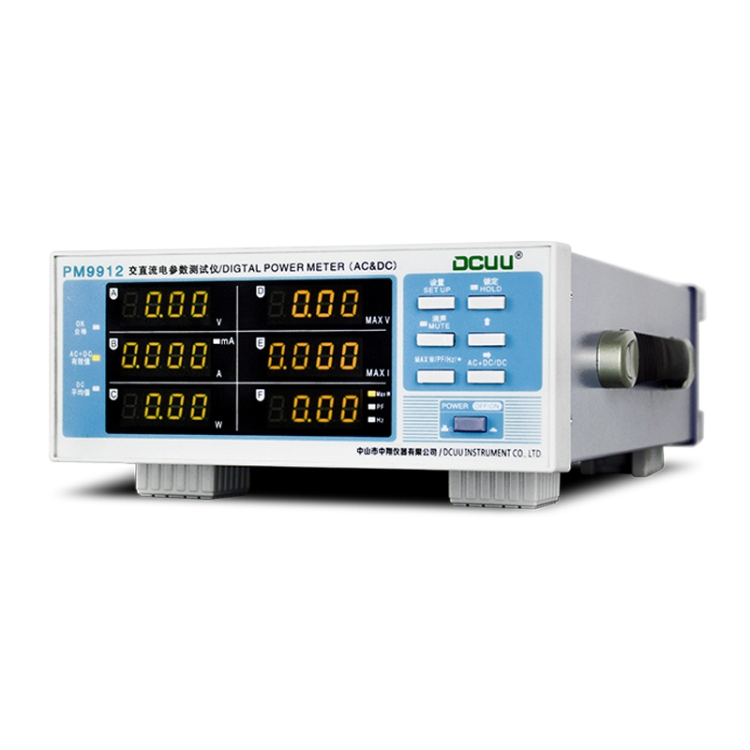

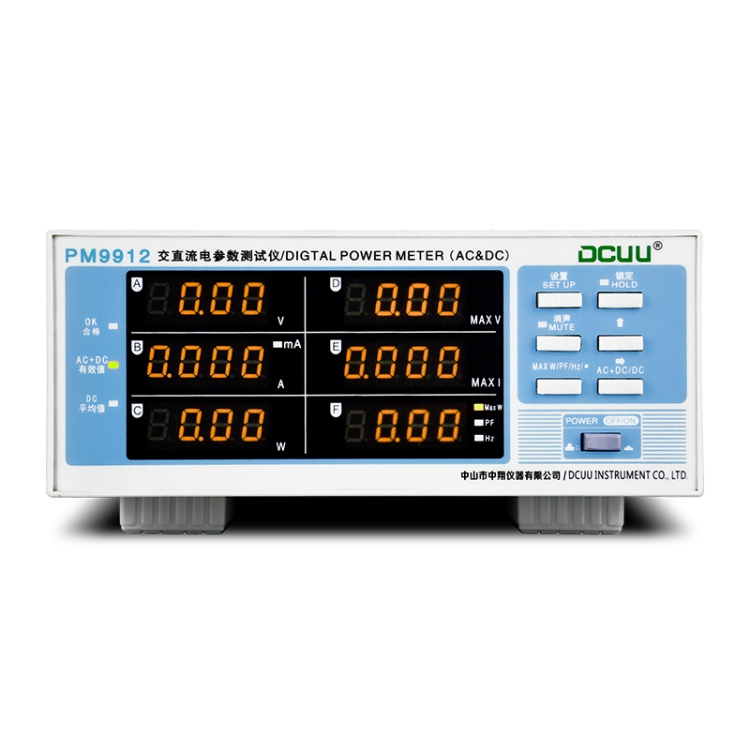

PM9912 Intelligent Electrical Parameters Measuring Instrument, US Plug
PM9912智能电参数测量仪 美规
条码：6922461836995
HSCode：90303390
批量修改原始型号 		采购：Colin  编辑：Shadow  产品经理：Maura

Features
1. PM9912 intelligent electric parameter measuring instrument is a multi-function measuring instrument integrating voltage test, current test, power test, power factor test and frequency test.

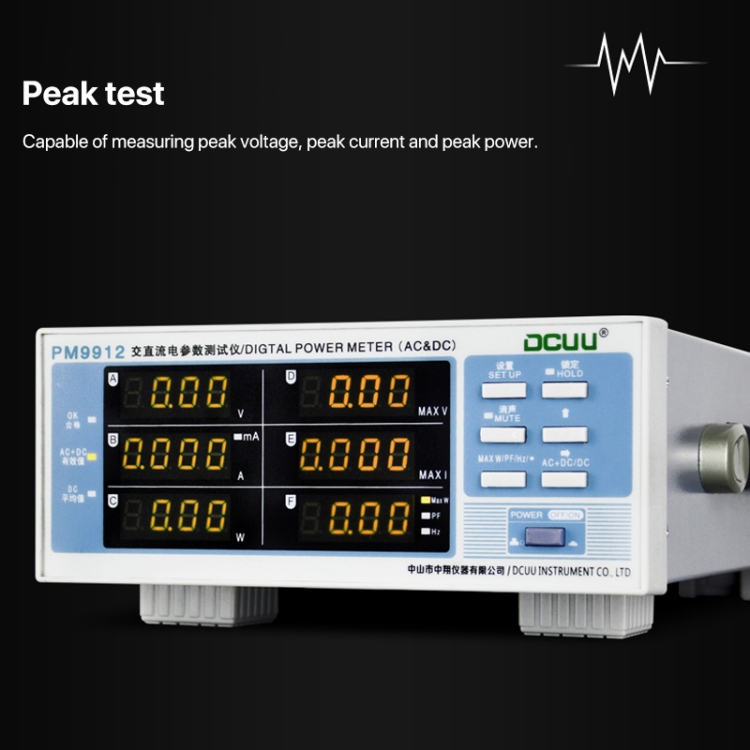

2. In addition to basic electric parameter measurement function, PM9912 intelligent electric parameter tester increases peak-voltage and peak-value. Current, active power, reactive power test.
3. It has the functions of current and power upper and lower limit setting, discrimination and alarm to avoid the problems of fatigue, misjudgment and inefficiency caused by traditional manual discrimination. Ideal for line measurement.

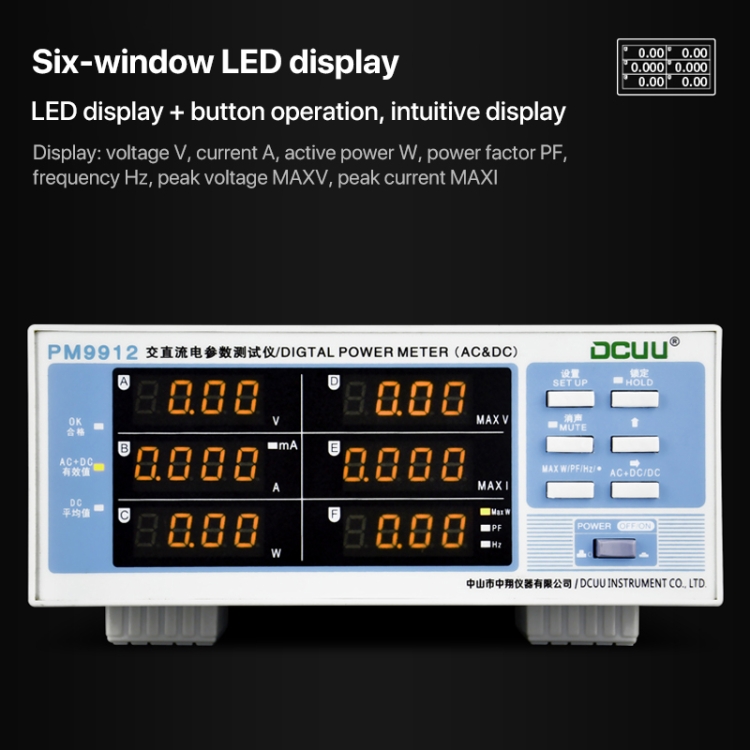

4. Six windows display: Voltage V, current A, active power, peak-voltage MAXV, peak-current MAX I, power factor PF/frequency Hz/apparent power VA/reactive power Var

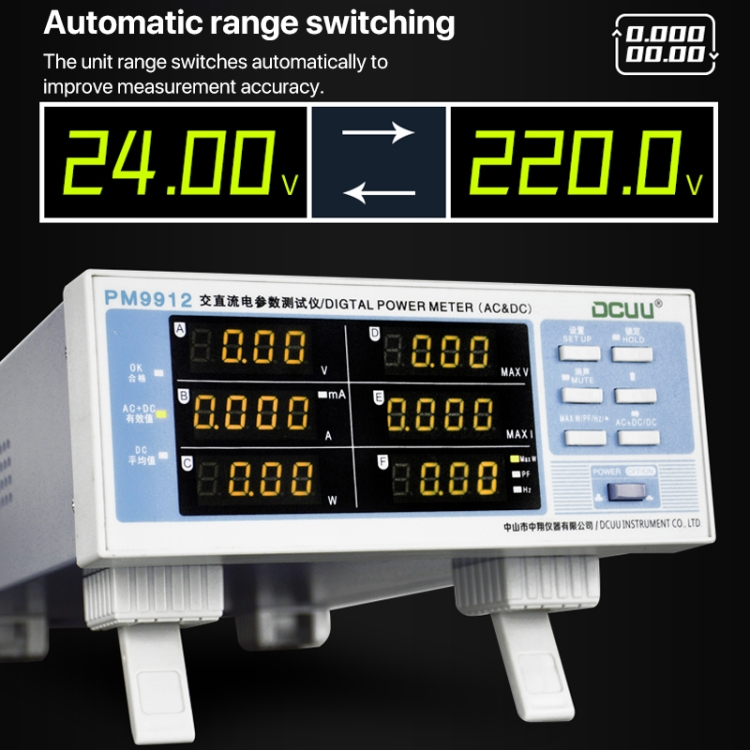

5. Voltage: 3V~600V; Current: 5mA~20A; +/-(0.4% reading + 0.1% range + 1 word)

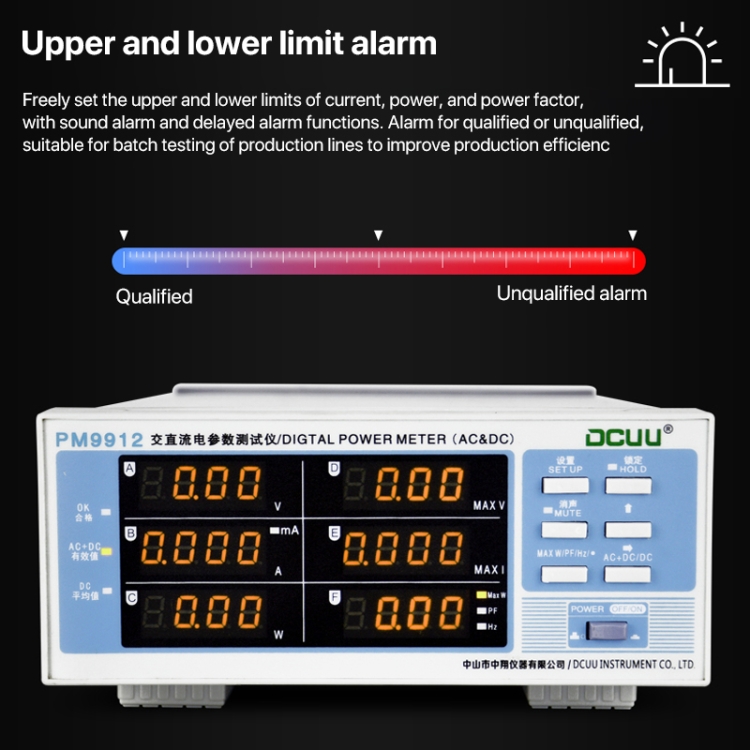

6. Upper and lower limit judgment function: With current, power, power factor upper and lower limit setting, judgment and alarm function (delayed alarm)
7. Latch function: used when data fluctuates, convenient for reading

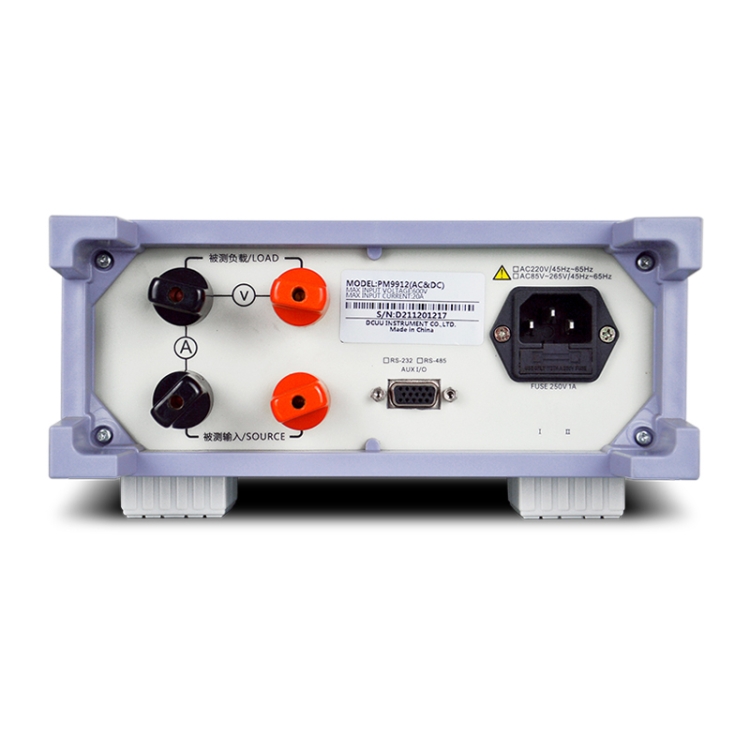

8. Communication interface: Optional RS232 or 485, relay output function (optional)
9. AC: 45Hz~65Hz/400 Hz Bandwidth: 5KHz

Package List
1. Host x 1
2. Power cord x 1
3. Product manual (electronic file) x 1
4. Product certificate x 1
5. Product warranty card x 1


1. PM9912智能电参数测量仪是集电压测试、电流测试、功率测试、功率因数测试、频率测试为一体的多功能测量仪器。
2. PM9912智能电参数测试仪除了基本的电参数测量功能外，增加了峰值电压、峰值电流、有功功率、无功功率测试。
3. 具有电流、功率上下限设定、判别、报警功能，避免传统人工判别带来的疲劳、误判、效率低下等问题，是在线测量的理想选择。
4. 六窗口显示：电压V、电流A、有功功率、峰值电压MAXV、峰值电流MAX I、功率因数PF/频率Hz/视在功率VA/无功功率Var
5. 电压：3V~600V；电流：5mA~20A； +/-(0.4%读数+0.1%量程+1个字)
6. 上下限判断功能：具有电流、功率、功率因数上下限设定、判断及报警功能（延时报警）
7. 锁存功能：数据波动时使用，方便读数
8. 通讯接口：可选RS232或485，继电器输出功能（可选）
9. 交流：45Hz~65Hz/400Hz带宽：5KHz

包装清单
1. 主机 x 1
2. 电源线 x 1
3. 产品说明书(电子档) x 1
4. 产品合格证 x 1
5. 产品保修卡 x 1


代码：

Specification:
Package weight
One package Weight 3.0kgs / 6.61lb
One Package Size 47.0cm * 32.0cm * 19.0cm / 18.5inch * 12.6inch * 7.48inch
Qty per Carton 4
Carton Weight 13kgs / 28.66lb
Carton Size 62cm * 47cm * 36cm / 24.41inch * 18.5inch * 14.17inch
