SKU:

SG112G1-RE SG50A 600V Anderson Connecting Puller Solar Connector Forklift Charging Plug
SG112G1-RE SG50A 600V安德森接头拉手太阳能连接器 叉车充电插头
条码：6922266022910
HSCode：39259000
批量修改原始型号 		采购：Felix  编辑：caifeng  产品经理：caifeng


1. Shell material: PC UL94V0
2. Contact material: silver-plated copper (terminals)
3. Process: injection molding
4. Cable introduction angle: 180 degrees
5. Flame retardant grade: V0
6. Application field: electrician and electrician
7. Wire specification: 3.5mm-5.6mm

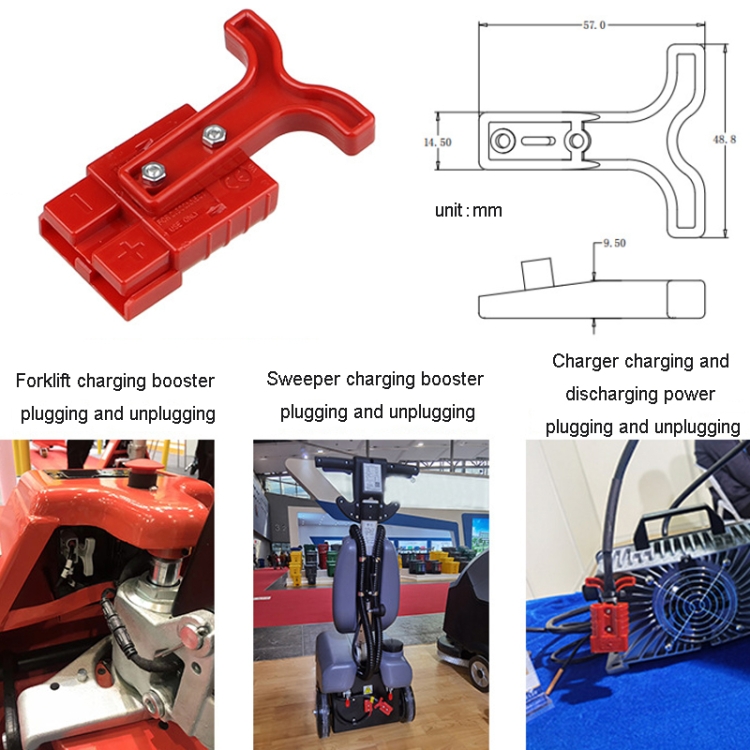

8. Hood size: 5.73 x 4.88 x 1.52 cm

Features:

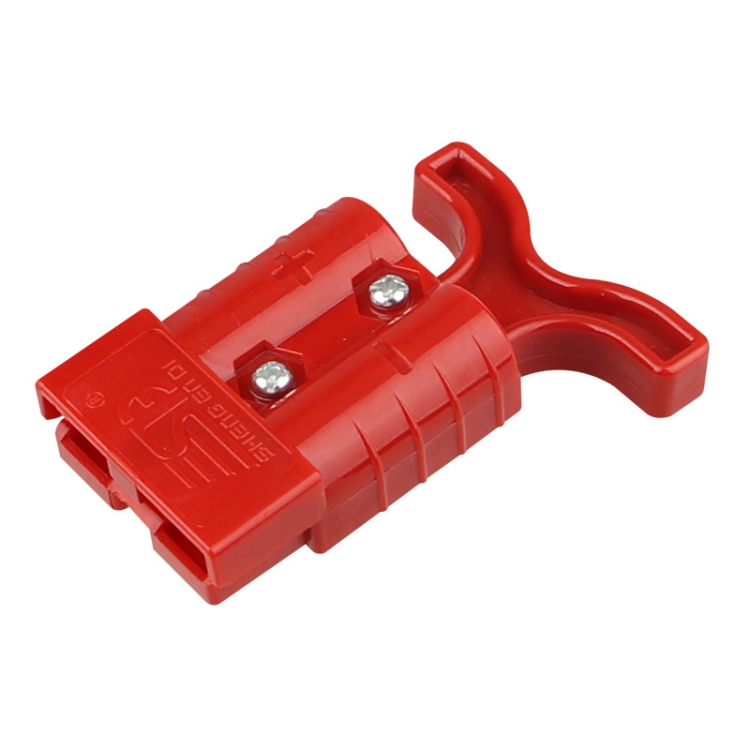

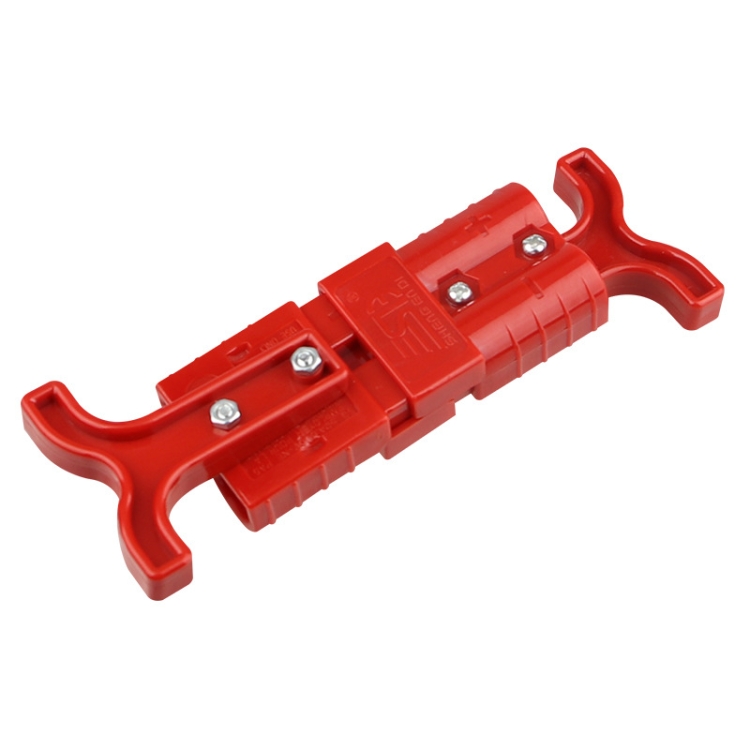

1. 50A plug T-puller with dovetail groove on the side of the housing can be assembled into various types of multi-pole connectors
2. Terminals are silver-plated copper, good conductivity, easy and quick installation, free splicing, corrosion-resistant shell to protect the surface of the terminals from damage

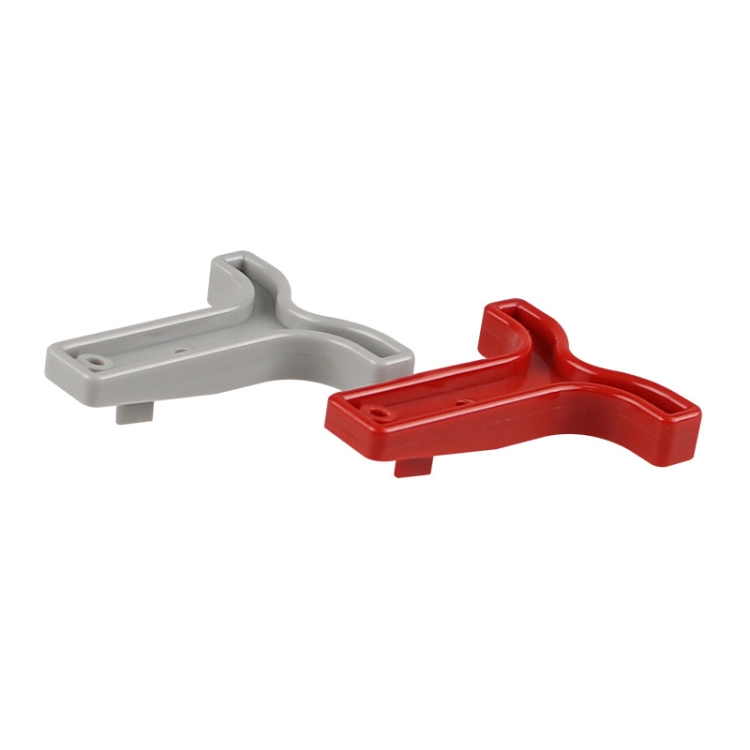

3. Interchangeable, no male and female shells, multi-color shells are used to distinguish the interface voltage, to prevent damage to the connector by wrong insertion

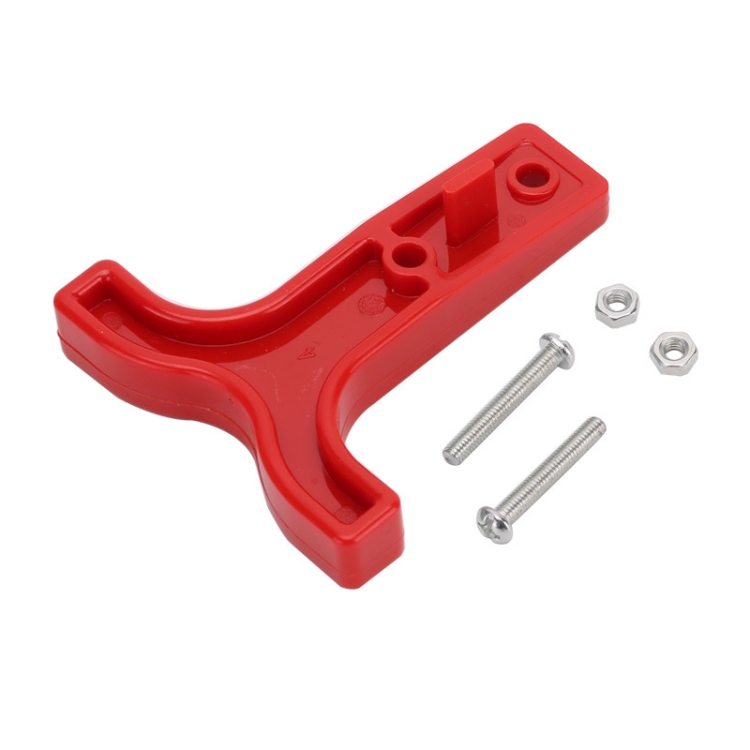

4. Anderson energy storage connector bipolar plug SG120A 600V fittings, to help plug the plug plug, convenient, labor-saving, safe and quick, six-side nut groove design, convenient in the nut into the groove, twist the screw can be installed on the plug handles
5. Wide range of applications, Anderson plug T-handle used in UPS chargers, lithium batteries, lead-acid batteries, sweepers, scrubbers, mobile power, forklifts, forklifts, sweepers, electrical vehicles and other new energy, high power and high-current equipment used in Anderson plug, T-handle to assist plugging and unplugging charging and discharging



1. 外壳材料：PC UL94V0
2. 触头材料：紫铜镀银（端子）
3. 工艺：注塑
4. 电缆引入角：180度
5. 阻火阻燃等级：V0
6. 应用领域：电工电气
7. 线规：3.5mm-5.6mm
8. 机罩尺寸：5.73 x 4.88 x 1.52 cm

特点：
1. 50A插头T型拉手，外壳侧面有燕尾槽，可组装成各种类型的多极连接器
2. 端子为镀银铜，导电性能好，安装方便快捷，可自由拼接，外壳耐腐蚀，保护端子表面不受损坏
3. 可互换，无公母壳之分，多色外壳用于区分接口电压，防止错误插入损坏连接器
4. 安德森储能连接器双极插头SG120A 600V的配件、助力插头对插时插拔、便捷省力、安全快捷，六边螺帽凹槽设计、便利于螺帽卡入凹槽、拧动螺杆即可安装拉手于插头上
5. 应用广泛，安德森插头T型拉手应用于UPS充电机、锂电池、铅酸电池扫地车、洗地车、移动电源、堆高车、叉车、扫地机、电动车等新能源大功率大电流设备使用到安德森插头、T型拉手助力插拔充放电


代码：

Specification:
Package weight
One package Weight 0.02kgs / 0.04lb
One Package Size 9.0cm * 8.0cm * 2.0cm / 3.54inch * 3.15inch * 0.79inch
Qty per Carton 360
Carton Weight 8.3kgs / 18.3lb
Carton Size 50cm * 38cm * 32cm / 19.69inch * 14.96inch * 12.6inch
