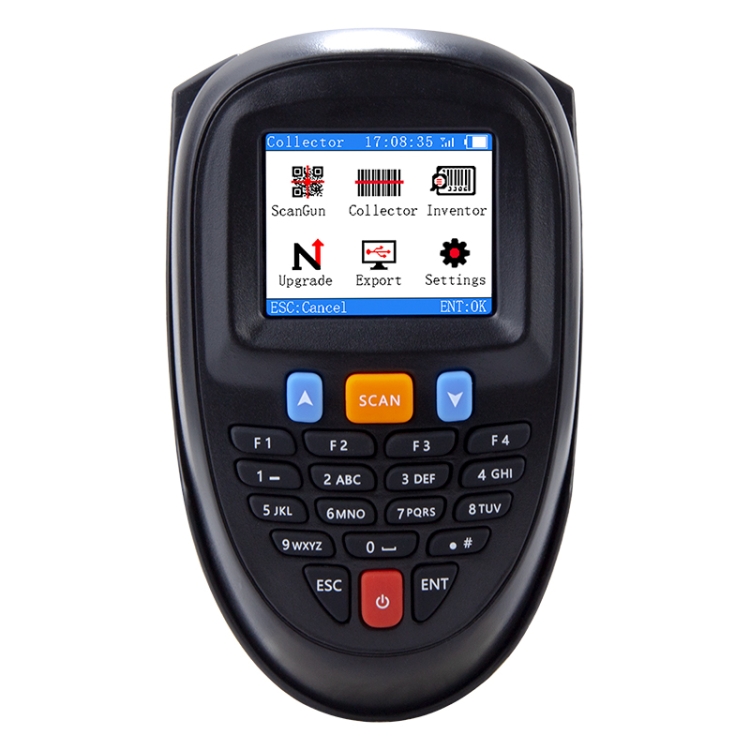

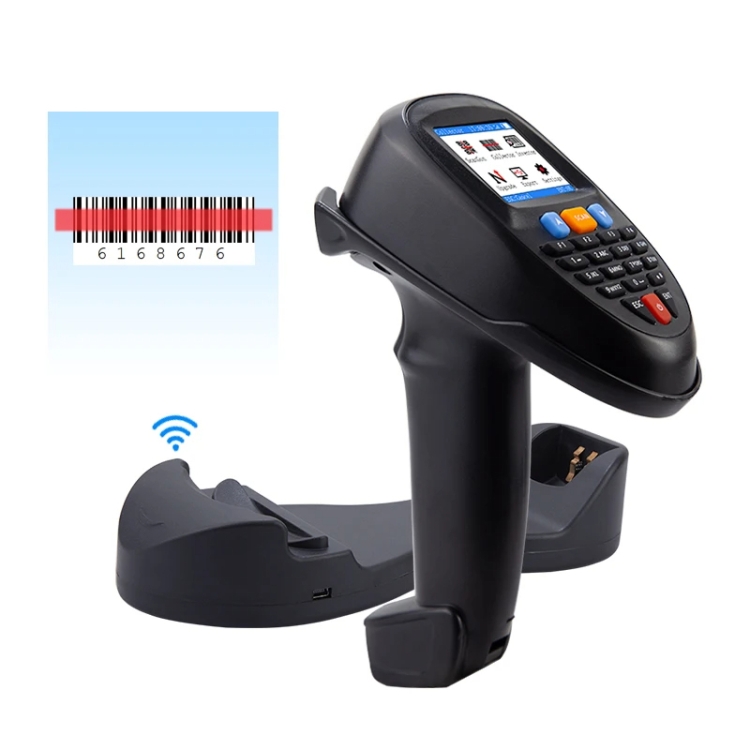

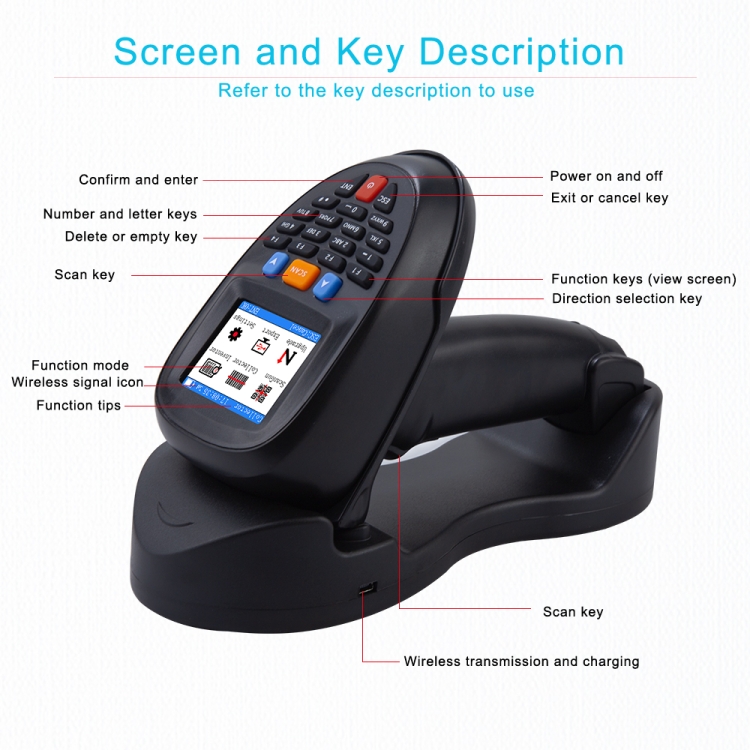

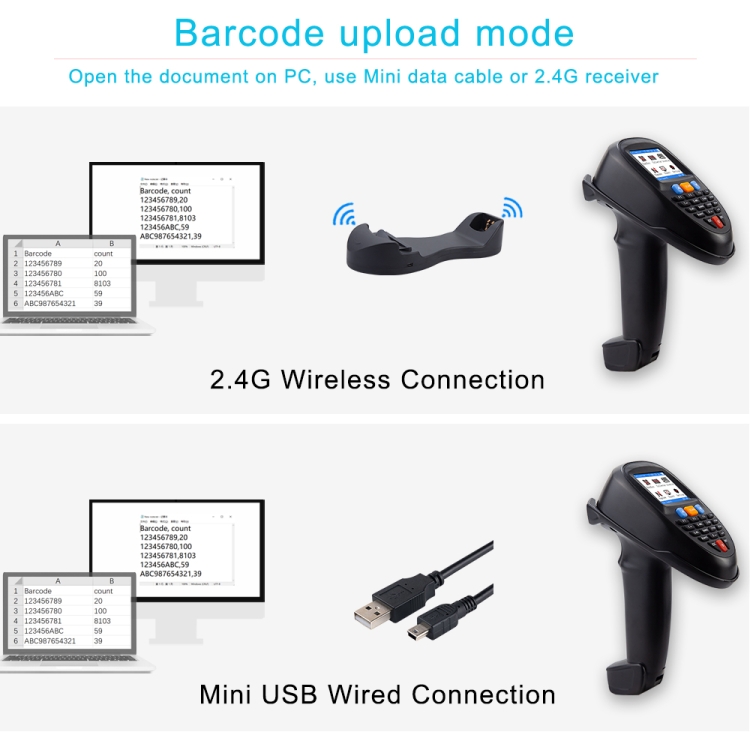

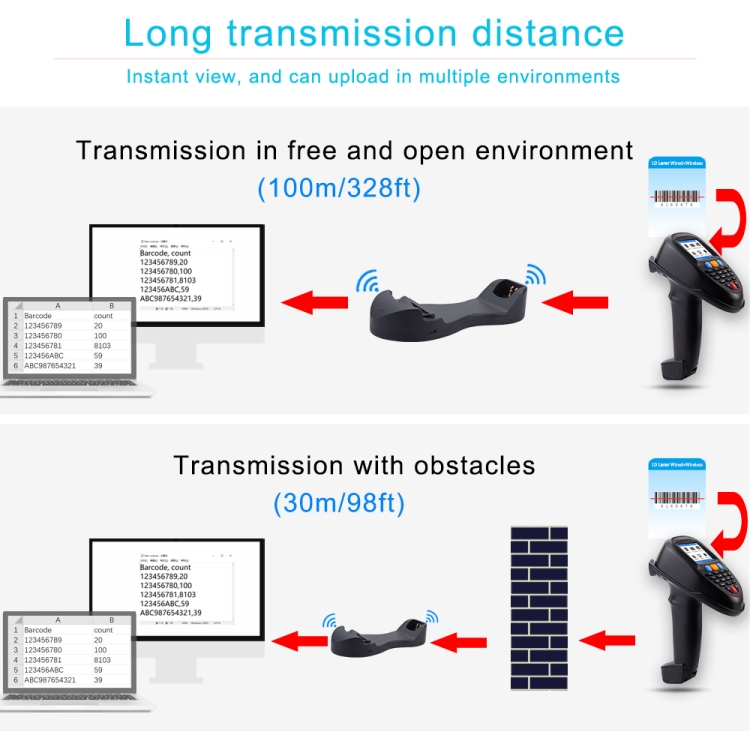

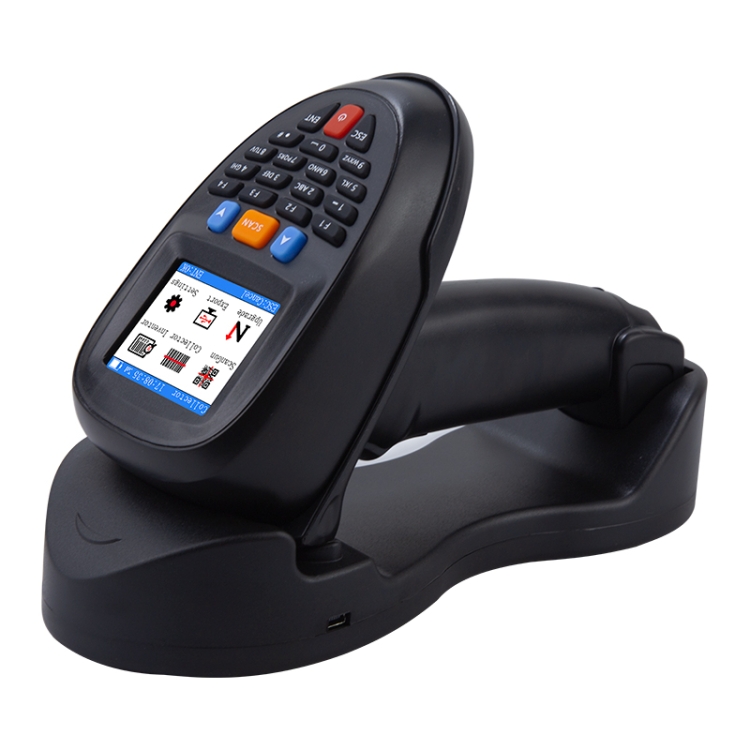

1. NS7103 wireless barcode collector can completely replace the traditional wireless scanner. In fact, it is a more powerful wireless scanner, but its appearance is different from the traditional wireless scanner. It is especially suitable for barcode scanning in logistics, large items and barcode scanning in large warehouses. At the same time, its keyboard and screen provide functions that wireless barcode scanners cannot achieve, such as manually inputting barcodes, scanning barcodes to view, and wireless signal strength monitoring. , battery power monitoring, etc. 2. The wireless transmission distance is up to 50-100 meters, so it can also be used directly as inventory equipment in small supermarkets, small bookstores and small warehouses. 3. Not only a wireless barcode scanner, it also has barcode collection and storage functions. The built-in FLASH memory can store up to 50,000 barcodes at a time, which is useful for barcode collection of office equipment, clothing inventory, incoming and outgoing inventory. and other similar applications are also suitable. Through the wireless batch transmission function, batch-collected barcodes can be automatically transferred to an Excel spreadsheet or to a text file for importing data into management software. 4. Wireless scanning function: After scanning the barcode, it is immediately sent to the wireless base station, and then sent to the computer through the wireless base station with the USB interface. If the signal is not good, 200-400 barcodes can be cached! 5. Barcode collection function: Barcode offline scanning and storage mode, the scanned barcode is saved instantly and uploaded to the computer at one time after scanning. Repeat code detection can be set to turn on, and each code can only be recorded once. 6. Inventory function: You can carry the scanner to a place beyond the wireless transmission range, read the product barcode and temporarily store it, and then return to the wireless distance for wireless transmission to the computer. After scanning the barcode, the quantity will be automatically accumulated or manually accumulated and saved. 7. No need to install any driver, just plug it in and use it 8. Using 32-bit high-speed ARM series CPU decoding chip, compatible with different terminal systems, supporting WIN10 WIN7 VISTA XP WIN2000 9. 2.2-inch TFT color LCD screen with adjustable backlight 10. Multifunctional base, which can both charge and communicate wirelessly

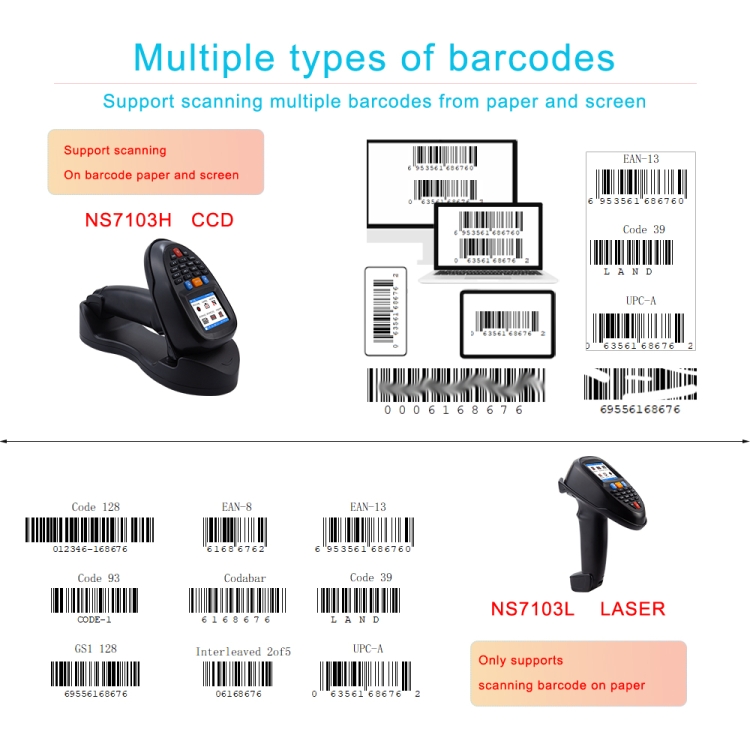

Parameter: 1. CPU: 32-bit high-speed ARM series CPU 2. FLASH: data will not be lost even if power is cut off, and can store more than 50,000 barcodes 3. Display: 2.2-inch TFT color LCD screen 4. Scanning method: 650nm laser 5. Power supply: Built-in 1200MAH rechargeable lithium battery, supports USB charging 6. Decoding types (please purchase the QR code when scanning the QR code): EAN13, EAN8, 39 code, 93 code, 128 code, IT25, Codebar, UPCA, UPCE, QRcode, PDF417, DataMatrix, etc. 7. Communication frequency: USB or 2.4G or 433M, two-way communication, two-way verification 8. Supported languages: Chinese/English

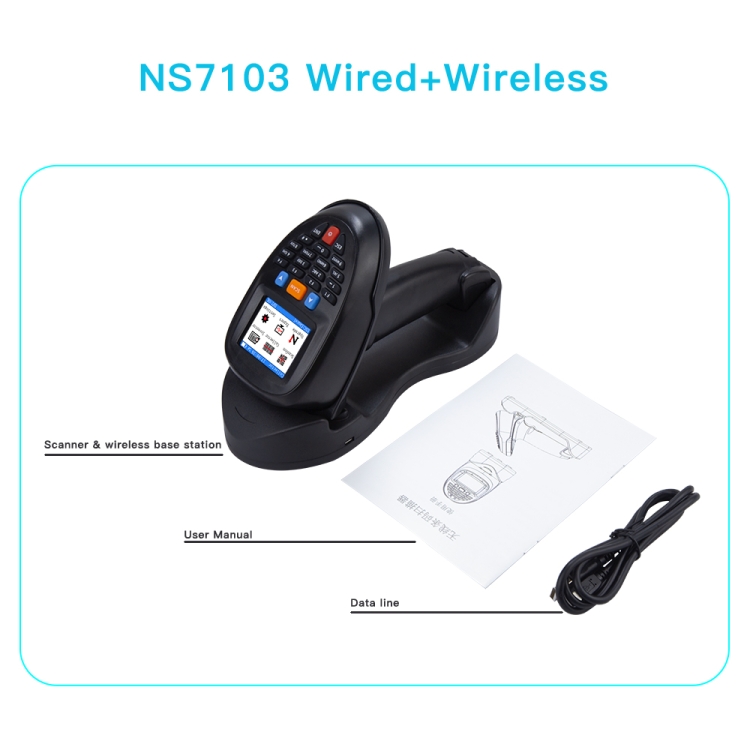

Packing list: Host Scanner x 1 Charging cradle x 1 Data cable x 1
中文描述：

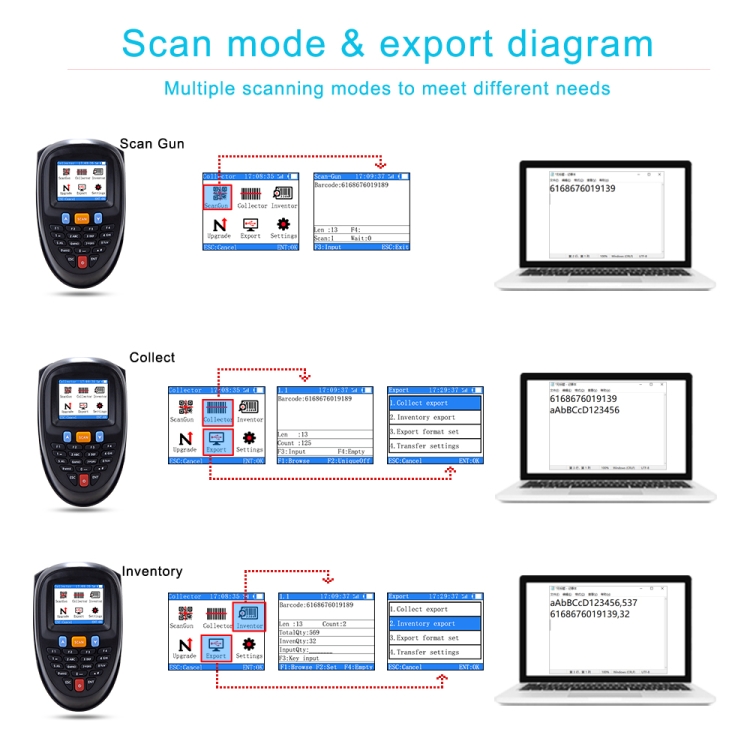

1. NS7103无线条码采集器可以完全替代传统的无线扫描枪，实际上，它是一个功能更加强大的无线扫描枪，只是外观和传统的无线扫描枪不同。尤其适合用于物流、大件物品的条码扫描和大型仓库内的条码扫描，同时它的键盘和屏幕提供了无线条码扫描枪无法实现的功能，如手工输入条码，扫描条码查看，无线信号强度监视，电池电量监视等。 2. 无线传输距离高达50-100米，因此也可以直接作为小型超市、小型书店和小型仓库的盘点设备使用。 3. 不只是一个无线条码扫描枪，它还具有条码采集和存储功能，内置的FLASH 存储器可以一次存储多达5万个条码，对于如办公设备的条码收集、服装的盘点、进货和出货清点及其它类似的应用也很适合。通过无线批量传送功能，批量采集的条码可以自动传输到Excel电子表格中，也可以传送到一个文本文件中以便数据导入到管理软件中。 4. 无线扫描功能：扫描条码后即时传送到无线基站，再通过USB接口的无线基站发送给电脑。如信号不好，可缓存200-400个条码！ 5. 条码采集功能：条码离线扫存储方式，扫描的条码即时保存，扫描结束后一次性上传到电脑。可设置打开重复码检测，每个码只能被记录一次。 6. 盘点功能：可携带扫描枪到超出无线传输范围外的地方，对商品条码读取后暂时存储，回到无线距离内进行无线传输到电脑上。扫描条码后会自动累加或手动累加数量并保存。 7. 无需安装任何驱动，插入即可使用 8. 采用32位高速ARM系列 CPU 解码芯片，兼容不同终端系统，支持WIN10 WIN7 VISTA XP WIN2000 9. 2.2英寸TFT彩色液晶屏，背光可调 10. 多功能底座，既可以充电，也可以无线通讯
