型号:TBD0605316901     大类别:Consumer Electronics     第2级类别:Test Equipment  -->子类别:Gas Monitor   审核产品   所有审核和提问(new)  1688链接英文名称:Car Halogen Air Conditioning Refrigerant Leak Detector, Model: WJL-6000
中文名称:汽车卤素空调制冷剂测漏仪,型号:WJL-6000
颜色:
包装:Plastic Bag
配件:null
装箱资料:
每箱:60pcs
重量:14kgs
外箱尺寸:51cm * 37cm * 43cm
采购:Felix  编辑:Leah(2024-10-16)  美工:Leah


1. Measurement object: car air conditioner
2. Sensitivity (MAX): 6gr/yr
3. Response time: instantaneous
4. Detection method: continuous, unlimited
5. Warm-up time: about 6 seconds
6. Battery life: about 50 hours under normal use
7. Probe length: 20cm
8. Working temperature: 0~52 degrees Celsius
9. Working humidity: 20% to 80%RH, no condensation

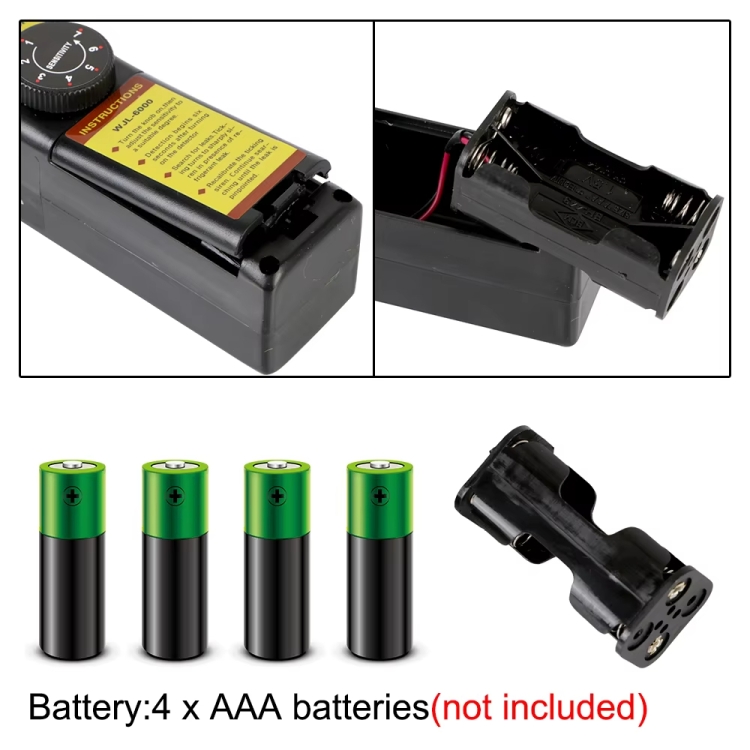

10. Power supply: 4 No. 7 batteries (not included)
11. Can detect all halogen refrigerants
12. The knob switch can adjust the sensitivity at will
13. Use high-quality corona sensor, sensitive response, longer life
14. Low power consumption design, ultra-long battery life
15. The maximum sensitivity is 6 grams/year, and the sensitivity can be adjusted in 7 levels. It can detect halogen gases such as CFCs/HCFCs/HFCs/SF-6 to meet the usage habits of different customers.

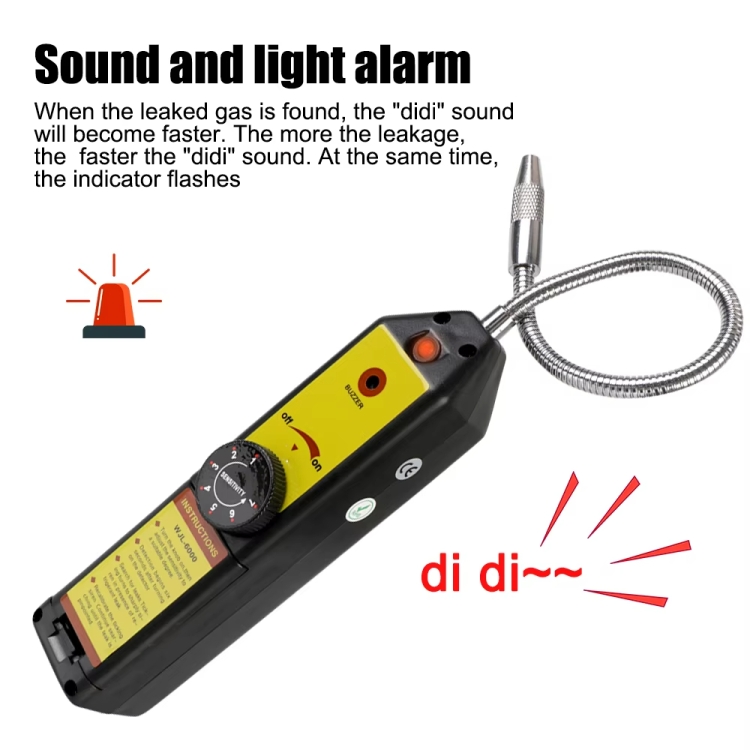

16. Ready to use, fast preheating, quick response, sound/light dual alarm

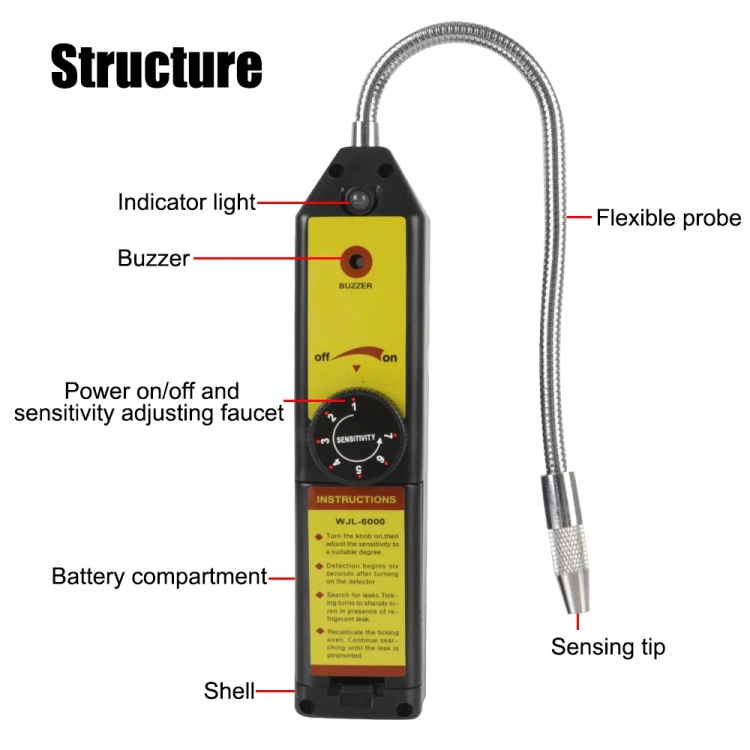

17. The freely bendable gooseneck probe can easily and quickly reach the location of the pipeline leak, and quickly and reliably locate the leak point of the refrigeration system
18. Size: 22.9x6.5x6.5cm

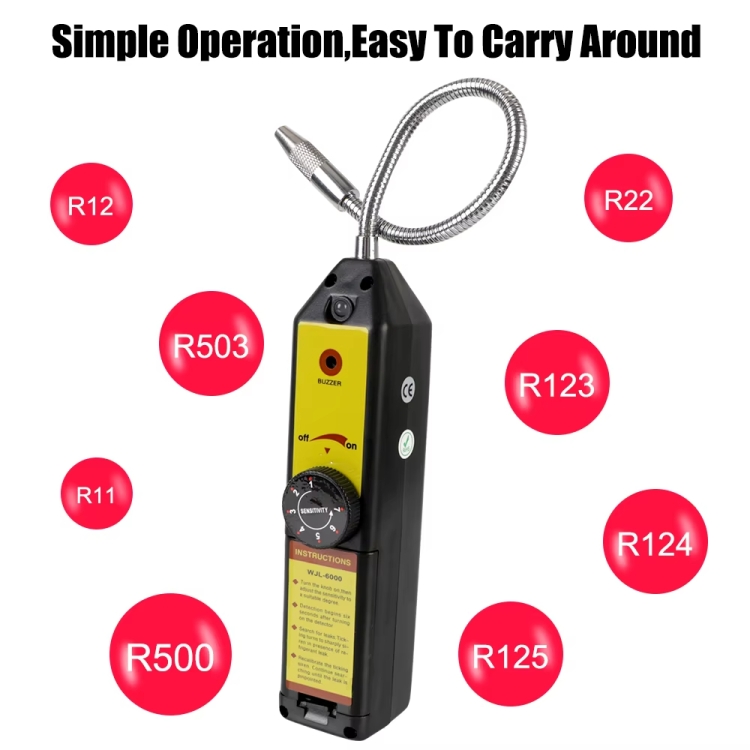

Can detect a variety of gases:
1. It can react with all halogen gases (including chlorine and fluorine), but it is not limited to this. Other applicable gases are as follows:
CFCs: R11, R12, R500, R503, etc.
HCFCs: R22, R123, R124, R502, etc.
HFCS: R410, R134a, R404a, R125, R407C, etc.
2. Detection of ethylene oxide, ethanol gas, etc. used in medical equipment
3. Detection of halon gas in fire extinguishing systems
4. Detection of air conditioning, refrigeration systems and refrigerant recovery devices, etc.
中文描述:

1. 测量对象:汽车空调
2. 灵敏度(MAX):6gr/yr
3. 响应时间:瞬时
4. 检测方式:连续,无限制
5. 预热时间:约6秒
6. 续航时间:正常使用下约50小时
7. 探杆长度:20cm
8. 工作温度:0~52摄氏度
9. 工作湿度:20%到80%RH,不可结露
10. 电源:4节7号电池(不含)
11. 可检测所有卤素类制冷剂
12. 旋钮开关任意调节灵敏度
13. 采用优质电晕传感器,反应灵敏,寿命更长久
14. 低功耗设计,超长续航
15. 极限灵敏度6克/年,7级灵敏度可调节,可检测CFCs/HCFCs/HFCs/SF-6等卤素气体,满足不同客户的使用习惯
16.即开即用,快速预热,响应迅速 ,声/光双重报警
17. 可自由弯曲的鹅颈探杆,轻便快速触达管道漏点的位置,快速可靠的定位制冷系统的泄漏点
18. 尺寸:22.9x6.5x6.5cm

可检测多种气体:
1.可与所有卤素气体(包括氯和氟)起反应,但还不局限于此,其它适用气体如下:
CFCs:R11、R12、R500、R503等
HCFCs:R22、R123、R124、R502等
HFCS:R410、R134a、R404a、R125、R407C等
2. 检测医用设备用到的乙烯氧化物、乙醇气体等
3. 检测灭火系统中的哈龙气体
4. 检测空调、冷冻系统和冷媒回收装置等

搜索关键词:Refrigerant Gas Analyzer, Freon Halogen Leak Detector, Car Diagnostic Tools, Gas Leakage Tester

OEM/ODM are Welcome! we can make Customize design and print your logo
