型号：TBD0606133601     大类别：Consumer Electronics     第2级类别：Electronics Module  -->子类别：Other Accessories   审核产品   所有审核和提问(new)  1688链接英文名称：DP3A USB 15W Adjustable Power Supply Module LCD Display Mobile Boost Cable
中文名称：DP3A USB 15W可调电源模块液晶显式移动升压线

颜色： 包装：Plastic Bag 配件：null 装箱资料： 每箱：210pcs 重量：15.8kgs 外箱尺寸：50cm * 38cm * 32cm 采购:Lijialiang  编辑:Jessica(2025-07-11)  美工:Jessica

给产品打分

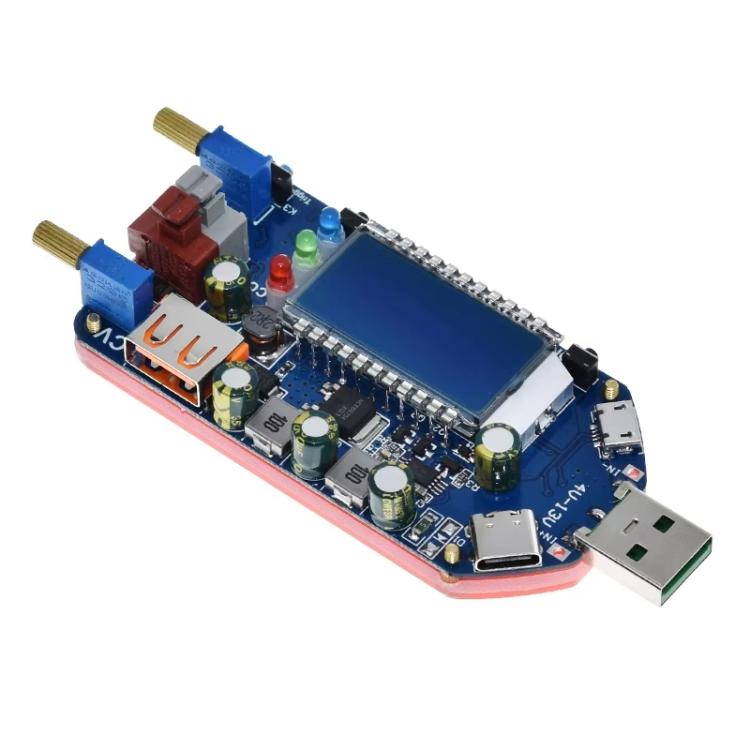

1. Input voltage: 4-13V (USB male, MicroUSB, Type-C 3 input interfaces)
2. Output voltage: 1-30V (Quick terminal output, USB female output, note that the two are directly connected, carefully check the output voltage before inserting the USB device!)
3. Output current: 0-2A (In constant voltage mode, the output current is adaptive according to the load size and is not adjustable. If you set the limit current to 1A, then when the load current is greater than 1A, it automatically enters the constant current mode with a maximum output of 1A)
4. Output power: less than 15W (When the output power is greater than 15W, the output is automatically shut down and OPP is displayed. After reducing the load power, press the ON/OFF button to solve it. When the input current is too large, it may not work for a long time above 10W due to temperature protection)
5. Voltage display: resolution 0.01V, accuracy +/-0.1V, no reserve, self-calibration
6. Current display: resolution 0.001A, range 0-2.2A, accuracy +/-0.05A, no reserve, self-calibration
7. Power display: 0.00W-15.0W
8. Temperature protection: When the power element temperature is higher than 100 degrees Celsius, it enters OTP protection. After reducing the load power, press the ON/OFF key to solve it (power within 10W for long-term operation generally will not enter OT protection. When the input current is greater than 3A, it may enter over-temperature protection when working for a long time. Even if it does not reach 15W, it is recommended to use an adapter with fast charging function)
9. Working current: about 30mA
10. Charging anti-backflow: support, can be directly connected to the battery for charging, no need to add a diode
11. Short circuit protection: support
12. Weight: about 44g

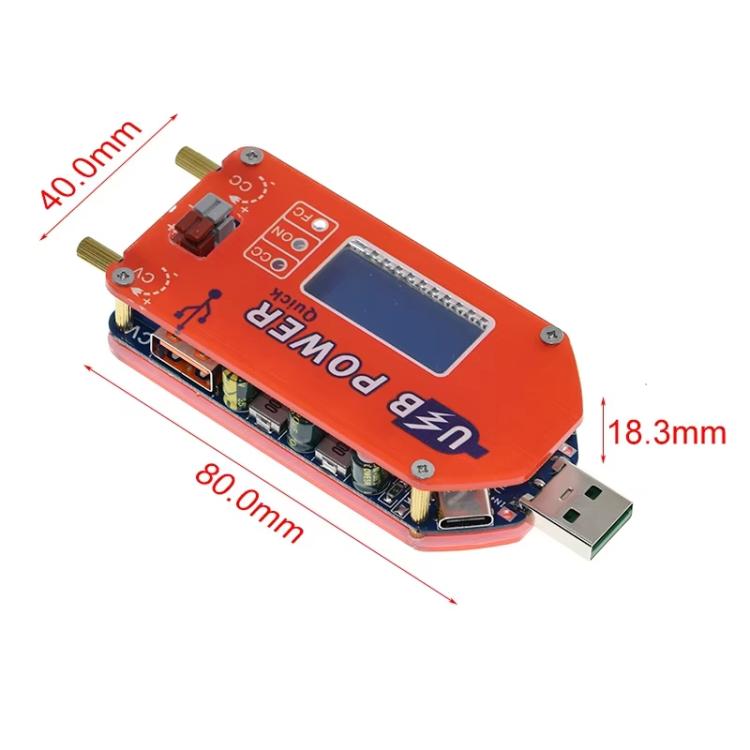

13. Size: about 8 x 4 x 1.83cm

Features:

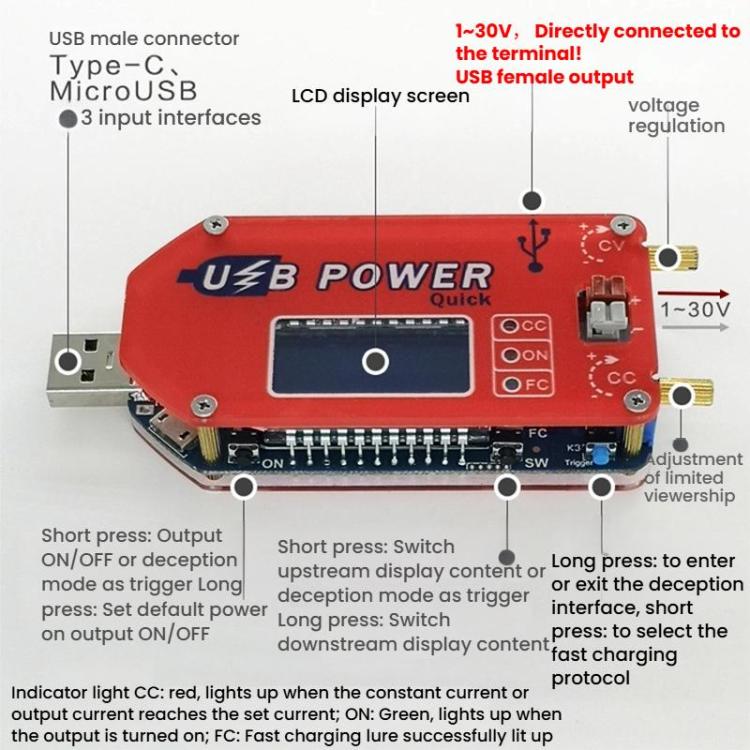

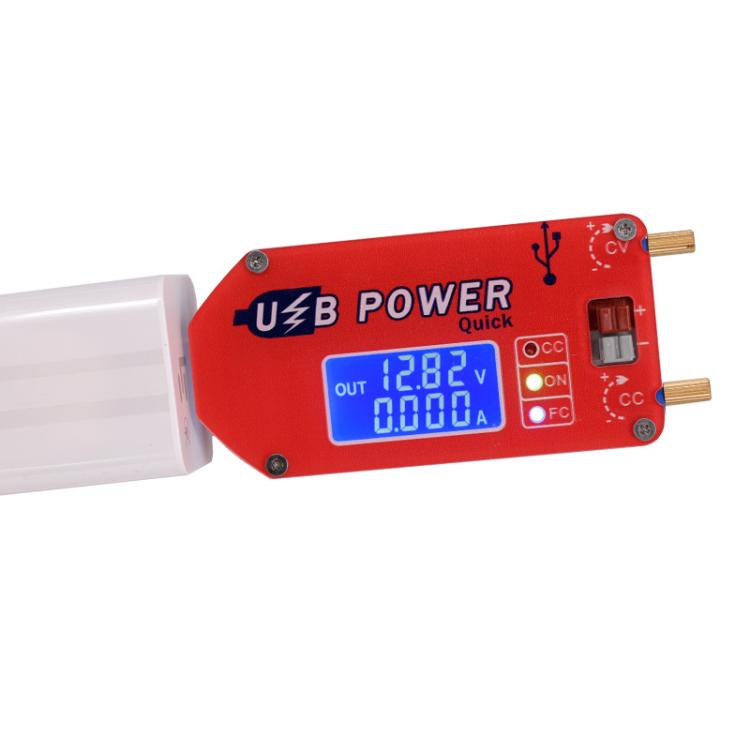

1. LCD displays input voltage, output voltage, current, power, and capacity statistics, with a voltage resolution of 0.01V and a current resolution of 0.001A
2. With USB female output, it is convenient to connect USB fan and other USB interface devices

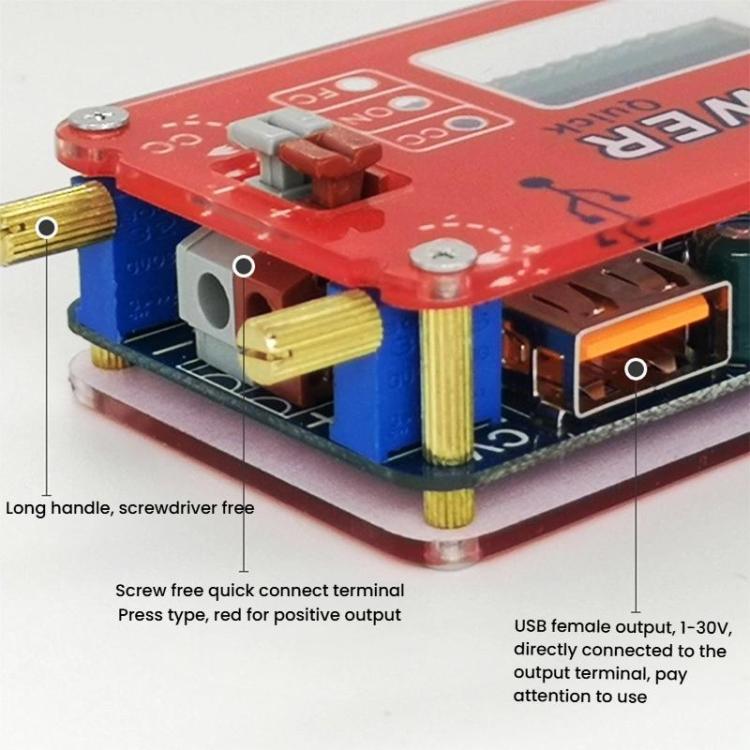

3. Screw-free quick wiring terminal, push-type wiring and wire pulling, no need to screw, convenient and fast
4. When setting the current limit value (constant current), there is no need to short-circuit or use a multimeter, and the current limit value can be directly displayed
5. With intelligent fast charging deception, it solves the problem of insufficient power supply of the USB input port, supports mainstream fast charging protocols QC2.0 3.0, FCP SCP AFC, and can also choose not to deceive or automatically select deception mode
6. High power 15W, 2A current, can be used for fan speed regulation, desktop power supply, adjustable charger, router power supply, etc.
7. Adjust the output voltage arbitrarily, limit the current 0-2A (wide input 4-13V, wide output 1-30V arbitrarily adjustable, with short-circuit protection, short-circuit will not burn)
8. Used as a USB charging cable, the charging voltage and charging current can be adjusted at will (any voltage, with constant current and anti-backflow, to meet the charging needs of most batteries)
9. Multiple protections, short circuit, over-current, over-temperature, over-power, over-voltage protection, charging anti-backflow protection


中文描述：

1. 输入电压：4-13V(USB公头、MicroUSB、Type-C 3种输入接口)
2. 输出电压：1-30V (快速接线端子输出，USB母头输出，注意二者是直连关系，插入USB设备前认真检查输出电压！)
3. 输出电流：0-2A (恒压模式下输出电流是根据负载大小自适应的，并不是可调节的，假如您设置限制电流为1A，那么负载电流大于1A时，自动进入恒流模式，最大输出1A)
4. 输出功率：小于15W (输出功率大于15W时，自动关断输出，显示OPP，减小负载功率后,，按ON/OFF键解决，输入电流过大时，有可能因为温度保护，不能长期工作于10W以上）
5. 电压显示：分辨率0.01V，精度+/-0.1V左右，无预留，自行校准
6. 电流显示：分辨率0.001A，量程0-2.2A左右，精度+/-0.05A左右，无预留，自行校准
7. 功率显示：0.00W-15.0W
8. 温度保护：功率元件温度高于100摄氏度时，进入OTP保护，减小负载功率后，按ON/OFF键解决(功率在10W以内长期工作一般不会进入OT保护，当输入电流大于3A时，长时间工作时可能会进入过温保护，即使没有达到15W，推荐使用带快充功能适配器)
9. 工作电流：30mA左右
10. 充电防倒灌：支持，可直接接电池充电，无需再加二极管
11. 短路保护：支持
12. 重量：约44g
13. 尺寸：约8 x 4 x 1.83cm

特：
1. 液晶显示输入电压、输出电压、电流、功率、容量统计，电压分辨率0.01V，电流分辨率0.001A
2. 带USB母头输出，方便连接USB风扇等USB接口设备
3. 免螺丝快速接线端子，按压式接线拔线，无需拧螺丝，方便快捷
4. 限流值（恒流）设定时，无需短接无需用万用表，可直接显示限制电流值
5. 带智能快充诱骗，解决USB输入口供电不足的问题，支持主流快充协议QC2.0 3.0,FCP SCP AFC，还可以选择不诱骗或自动选择诱骗模式
6. 大功率15W，2A电流，可用于风扇调速、桌面电源、可调充电器、路由器供电等
7. 任意调节输出电压，限制电流0-2A(宽输入4-13V，宽输出1-30V任意调节，带短路保护，短接不烧)
8. 做为USB充电线使用，任意调节充电电压和充电电流(任意电压，带恒流、防倒灌，满足大多数电池的充电)
9. 多重保护，短路、过电流、过温、过功率、过压保护，充电防倒灌保护



搜索关键词：Heat dissipation fan module, Blower speed control module, Pressure regulation module

OEM/ODM are Welcome! we can make Customize design and print your logo
