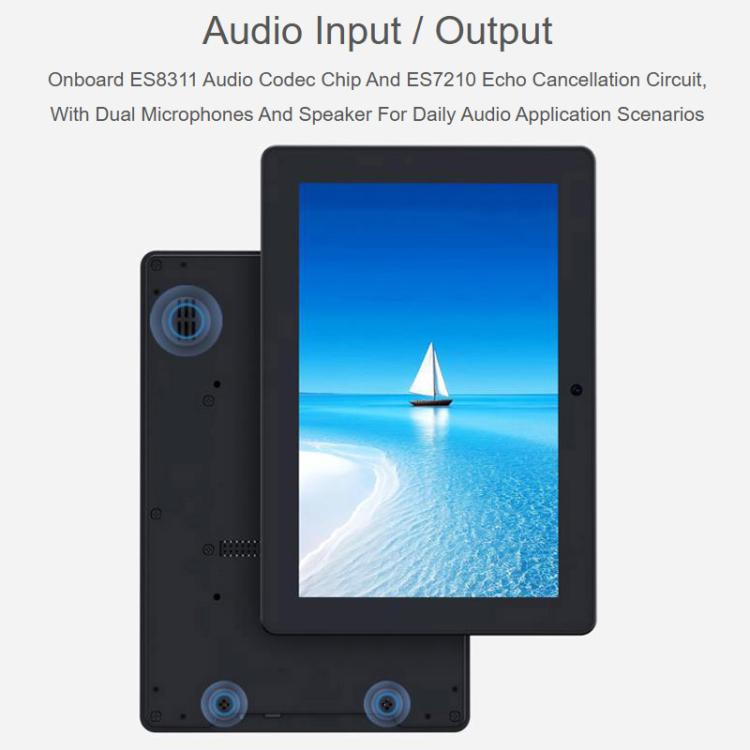

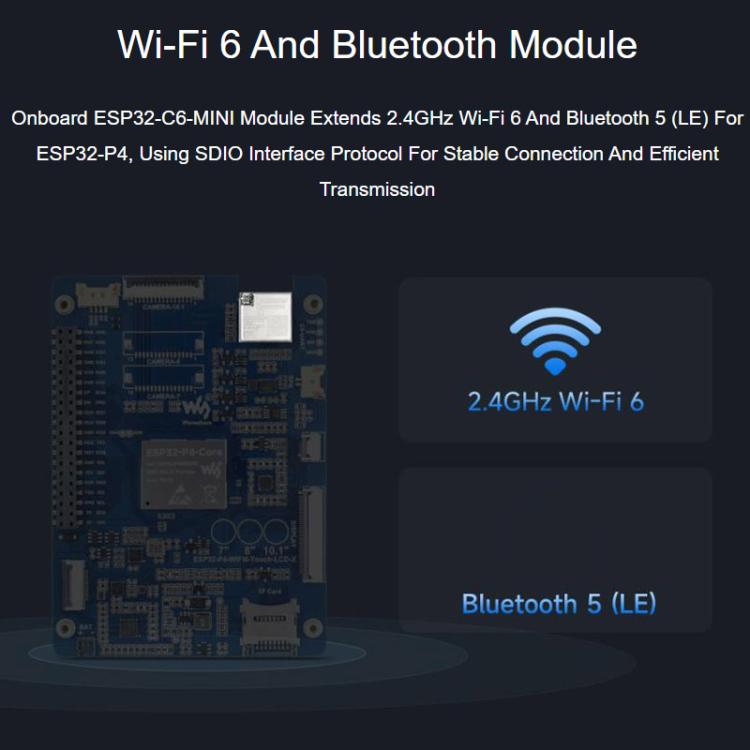

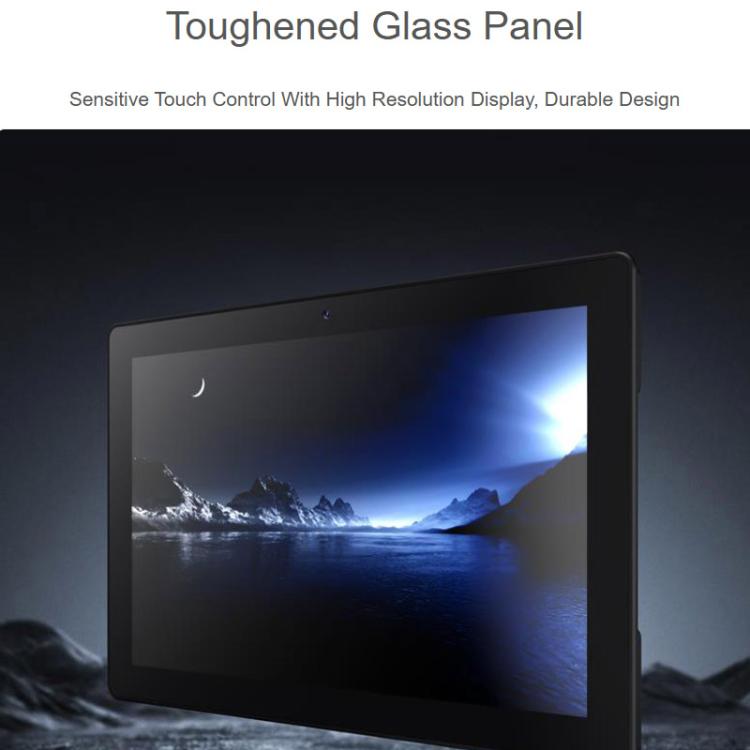

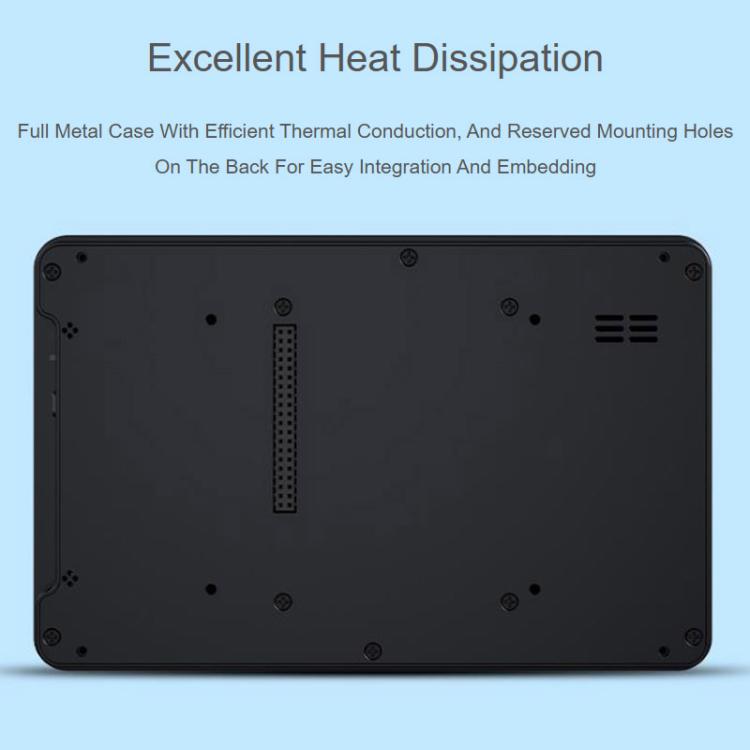

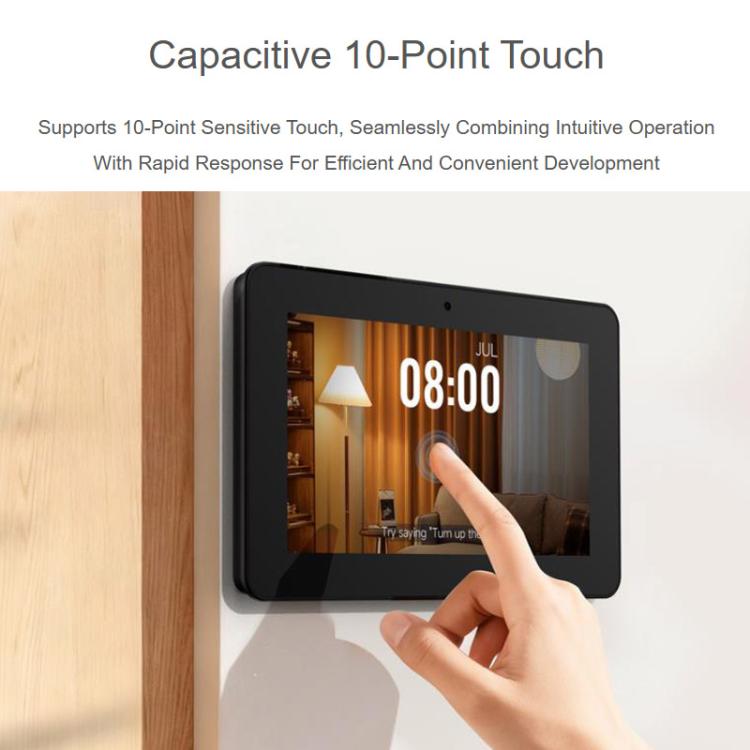

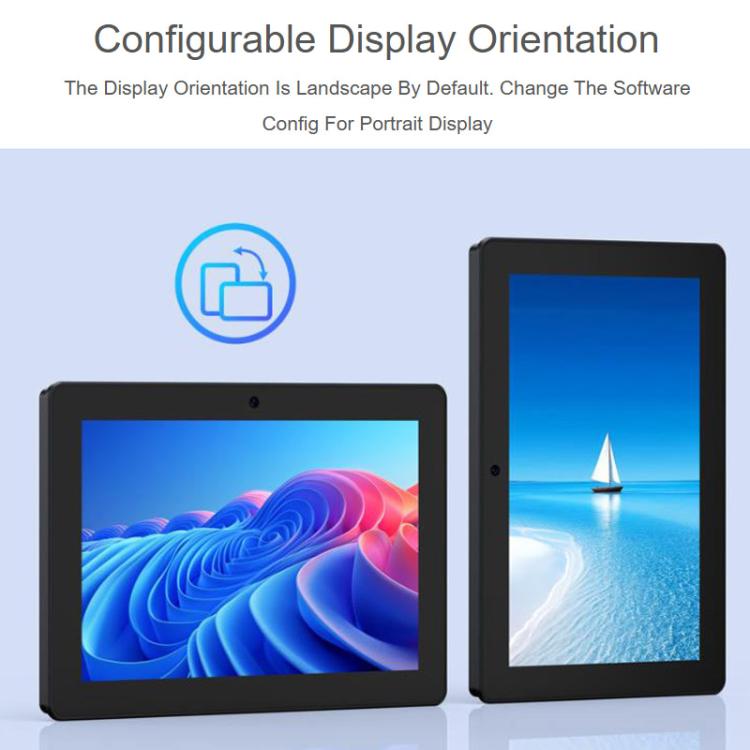

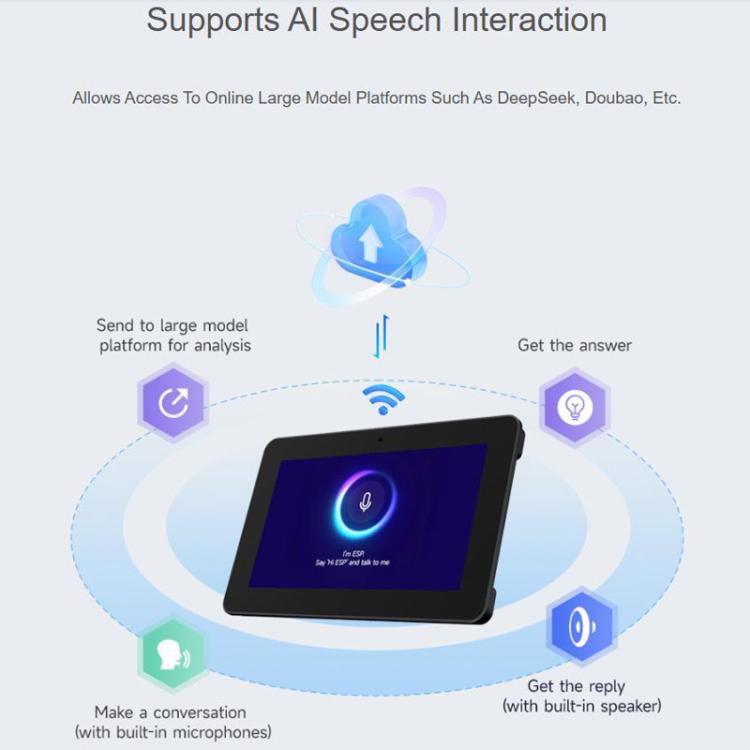

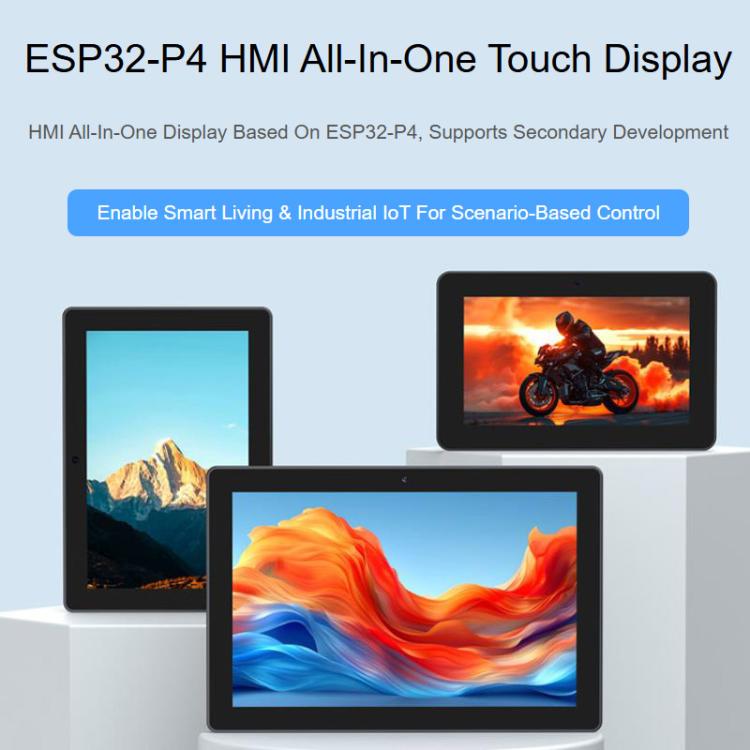

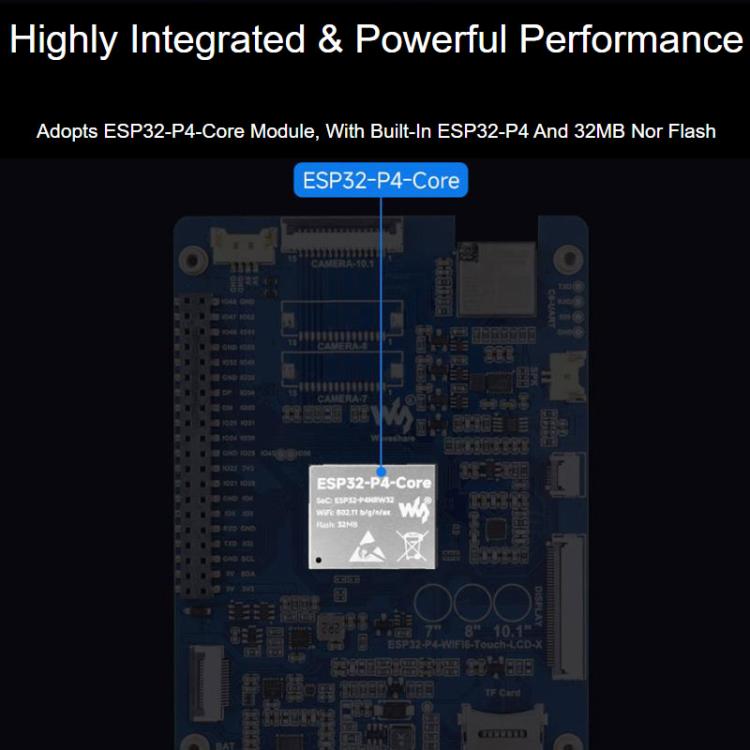

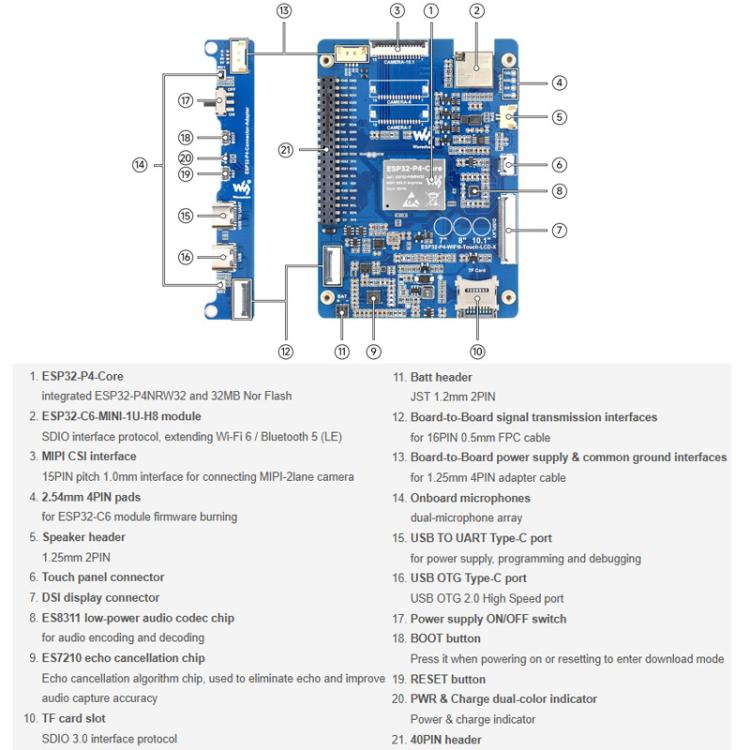

1. Tempered glass panel screen with responsive touch, high-definition display, and durable design 2. Capacitive 10-point touchscreen featuring sensitive touch, intuitive operation, and rapid response for efficient and convenient development 3. Supports landscape and portrait display modes. Default setting is landscape; portrait mode can be enabled via software configuration 4. Excellent heat dissipation with all-metal housing and efficient thermal design. Pre-drilled mounting holes on the back facilitate integration and embedding. 5. Highly integrated with powerful performance, featuring an ESP32-P4-Core module design. Includes built-in ESP32-P4 and 32MB NOR Flash. 6. Onboard ESP32-C6-MINI module extends ESP32-P4 with 2.4GHz Wi-Fi 6 and Bluetooth 5 (LE), communicating via SDIO protocol for stable connections and efficient data transfer 7. Onboard ES8311 audio codec and ES7210 echo cancellation circuit, paired with dual microphones and speaker to meet daily audio application needs 8. Supports AI voice interaction with mainstream AI platforms, enabling integration with online large model platforms, such as Doubao, DeepSeek, and other AI models

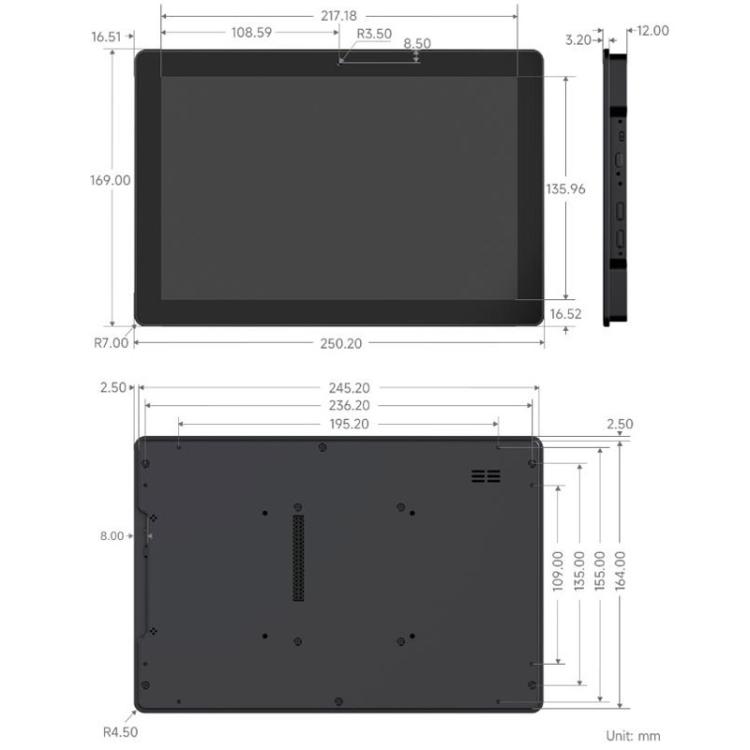

Screen specifications 1. Resolution: 7 inch: 120 x 1280; 8 inch/10.1 inch: 800 x 1280 2. Communication interface: MIPI 2-lane 3. Brightness: 7 inch: 450 cd/square meter; 8 inch/10.1 inch: 400 cd/square meter 4. Driver chip: 7 inch: ILI9881C; 8 inch/10.1 inch: JD9365 5. Touch chip: GT9271 6. Display size: 7 inch: 8.8 x 15.5cm; 8 inch: 10.824 x 172.82cm; 10.1 inch: 13.596 x 21.718 cm 7. Contrast ratio: 7 inch: 800:1; 8 inch: 1200:1; 10.1 inch: 800:1 8. Viewing angle: 7 inch: 170°; 8 inch/10.1 inch: 178° 9. Operating temperature: 0-60°C 10. Pixel size: 7 inch: 0.12075 x 0.12075mm; 8 inch: 0.13455 x 0.13455mm; 10.1 inch: 0.1692 x 0.1692mm

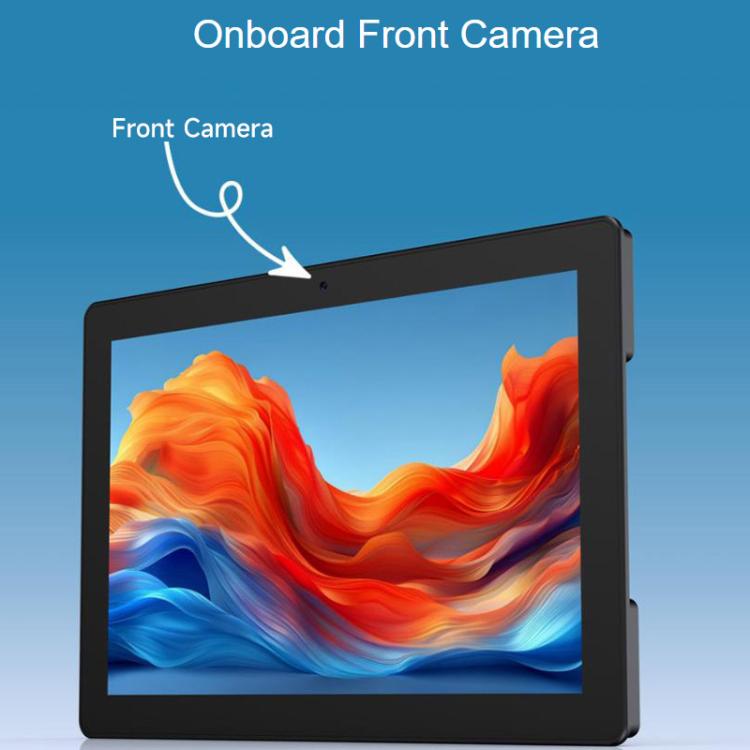

Front camera specifications 1. Image sensor: OV5647 2. CMOS size: 1/4 inch 3. Pixels: 5 megapixels 4. Aperture: F2.4 5. Focal length: 3.89mm 6. Diagonal field of view: 72.9° 7. Distortion: less than 1.5% 8. Depth of field: 20cm to infinity 9. Image: static image resolution 2592 x 1944 pixels 10. Video: 1920 x 1080p at 30fps, 1280 x 720p at 60fps, 640 x 480p at 60fps, 640 x 480p at 90fps
Packaging list: - Host x 1 - RPI-HMI press plate x 4 - Screw pack x 1 - 2PIN battery terminal about 80mm x 1
中文描述：
1. 钢化玻璃面板屏幕，灵敏触控，高清显示，耐用设计 2. 电容式10点触控屏，灵敏触控，直观操作与快速响应深度融合，让开发高效便捷 3. 支持横竖屏显示，本产品默认设置为横屏显示，可以通过修改软件设置进行竖屏显示 4. 良好的散热性能，全金属外壳，高效导热设计，背面预留固定孔，方便集成嵌入 5. 高度集成，强劲性能，采用 ESP32-P4-Core 模组集成设计，内置 ESP32-P4、32MB Nor Flash 6. 板载 ESP32-C6-MINI 模组，为 ESP32-P4 拓展了 2.4GHz Wi-Fi 6 和 Bluetooth 5 (LE)，使用 SDIO 接口协议通信，稳定连接、高效传输 7. 板载 ES8311 音频编解码芯片及 ES7210 回声消除电路，搭配双麦克风与喇叭，满足日常音频应用需求 8. 支持 AI 语音交互，支持主流 AI 平台，可接入在线大模型平台，如豆包、DeepSeek 等 AI 模型
屏幕参数 1. 分辨率：7寸：120 x 1280；8寸/10.1寸：800 x 1280 2. 通信接口：MIPI 2-lane 3. 亮度：7寸：450cd/平方米；8寸/10.1寸：400cd/平方米 4. 驱动芯片7寸：ILI9881C；8寸/10.1寸：JD9365 5. 触摸芯片：GT9271 6. 显示尺寸：7寸：8.8 x 15.5cm；8寸：10.824 x 172.82cm；10.1寸：13.596 x 21.718cm 7. 可比度：7寸：800:1；8寸：1200:1；10.1寸：800:1 8. 可视角度：7寸：170°；8寸/10.1寸：178° 9. 工作温度：0-60℃ 10. 像素大小：7寸：0.12075 x 0.12075mm；8寸：0.13455 x 0.13455mm；10.1寸：0.1692 x 0.1692mm
前置摄像头参数 1. 感光芯片：OV5647 2. CMOS 尺寸：1/4 英寸 3. 像素：500 万 4. 光圈：F2.4 5. 焦距：3.89mm 6. 对角视场角：72.9° 7. 畸变：小于1.5% 8. 景深：20cm-无穷 9. 图片：静态图片分辨率 2592 x 1944 像素 10. 视频：1920 x 1080p 30，1280 x 720p 60，640 x 480p 60，640 x 480p 90
包装清单： - 主机 x 1 - RPI-HMI 压板 x 4 - 螺丝包 x 1 - 2PIN 电池接线端子约 80mm x 1
搜索关键词：Supports Wi-Fi 6 BLE 5, With Dual Microphones And Speaker, High-Performance Development Board
